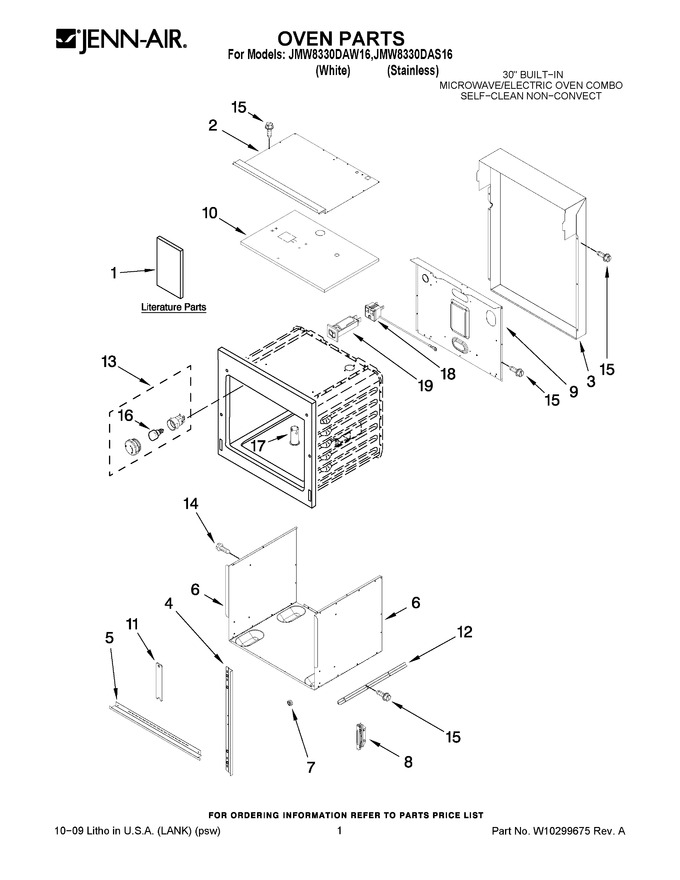

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P744-60		Installation Instructions		Appelez-nous	-
1	W10176680		Owners Manual		Appelez-nous	-
1	9762761		Brochure, Tips Safe Cooking		Appelez-nous	-
1	W10239613		Wiring Diagram		Appelez-nous	-
2	2624F074-51		Top, Outer				$ 21.14
3	2624F061-51		Back, Outer		Appelez-nous	-
4	7744P407-60		Trim, Side (white)		Appelez-nous	-
4	7744P406-60		Trim, Side (black)		Appelez-nous	-
5	3608F085-71		Trim, Oven (white)		Appelez-nous	-
5	3608F085-70		Trim, Oven (black)		Appelez-nous	-
6	2618F222-51		Panel-side		Appelez-nous	-
7	7109P085-60		Bumper, Rubber				$ 7.53
8	WP74008015		Receptacle, Hinge Assembly   (Replaces: 8014P031-60)				$ 225.36
9	2624F056-51		Retainer, Insul.		Appelez-nous	-
10	7002P358-60		Insulation, (top/back)		Appelez-nous	-
11	3605F236-50		Plate, Hinge Trap		Appelez-nous	-
12	3802F116-51		Bottom, Brace				$ 7.82
13	WP74011278		Assy., Light   (Replaces: 7407P181-60)				$ 101.56
14	W10828565		Screw   (Replaces: 7101P635-60)				$ 6.70
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
16	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 16.80
17	7505P322-60		Eliminator, Smoke		Appelez-nous	-
18	7408P055-60		Outlet, Appliance		Appelez-nous	-
19	WP71002286		Breaker, Circuit   (Replaces: 7429P006-60)				$ 70.95
NI	7002P368-60		Insulation, Wrap		Appelez-nous	-
NI	7002P251-60		Insulation, Back		Appelez-nous	-
