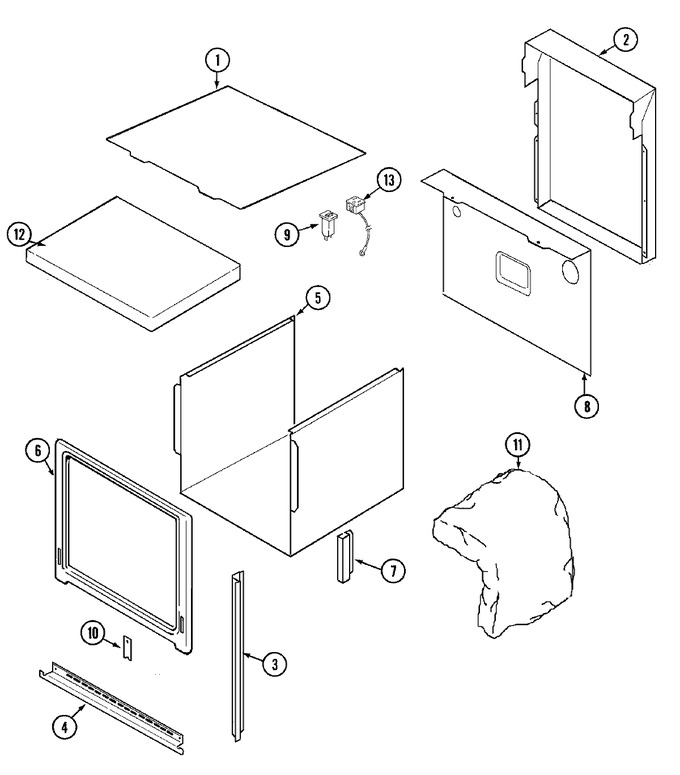

01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Microwave
06 - Microwave Frame & Attachments
07 - Oven
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001811 | Top, Oven (outer) | 10 |
|
- | ||||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 71001813 | Cover, Main Back | 10 |
|
- | ||||
| 3 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 71003535 | Trim, Side (lt-wht) | 10 |
|
- | ||||
| 3 | 71003534 | Trim, Side (rt-wht) | 10 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 71001827 | Screw | 10 |
|
- | ||||
| 4 | 74005644 | Trim, Oven (lwr-wht) | 11 |
|
- | ||||
| 4 | 71001821 | Trim, Oven (lwr-wht) | 10 |
|
- | ||||
| 5 | 74005645 | Panel, Oven (side/btm/side) | 10 |
|
- | ||||
| 6 | 71003180 | Frame, Oven | 10 |
|
- | ||||
| 7 | WP74008015 | Receptacle, Hinge Assy. (Replaces: 71001828) | 10 |
|
$ 225.36 | ||||
| 8 | 74004629 | Panel, Back (inr) | 10 |
|
- | ||||
| 9 | WP71002286 | Breaker, Circuit (20 Amp) (Replaces: 71002286) | 10 |
|
$ 70.95 | ||||
| 10 | 71001812 | Plate, Hinge Trap | 10 |
|
- | ||||
| 11 | 71001817 | Insulation (wrap) | 10 |
|
- | ||||
| 12 | 71003614 | Insulation (btm) | 10 |
|
- | ||||
| 12 | 71002329 | Insulation (back-top) | 10 |
|
- | ||||
| 13 | 701704 | Outlet, Appliance | 10 |
|
- | ||||
| 14 | W10759523 | Screw (wht) (Replaces: 71002263) | 10 |
|
$ 5.71 |
