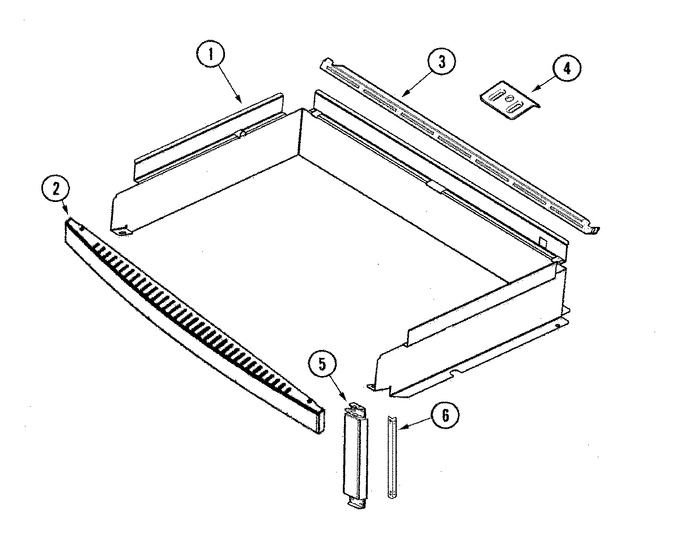

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007139 | Support, Microwave | 10 |
|
- | ||||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 74007146 | Trim, Top/bottom (stl 30``) | 10 |
|
- | ||||
| 3 | 74006759 | Retainer, Hold Down(30``) | 10 |
|
- | ||||
| 4 | 74006905 | Bracket, Anti-tip | 10 |
|
- | ||||
| 5 | 74007145 | Trim, Side (stl 30``) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 74006762 | Bracket, Trim | 10 |
|
- | ||||
| 6 | WP355214 | Screw (Replaces: Y700725) | 10 |
|
Immediately | $ 7.26 |
