SELECT A DIAGRAM

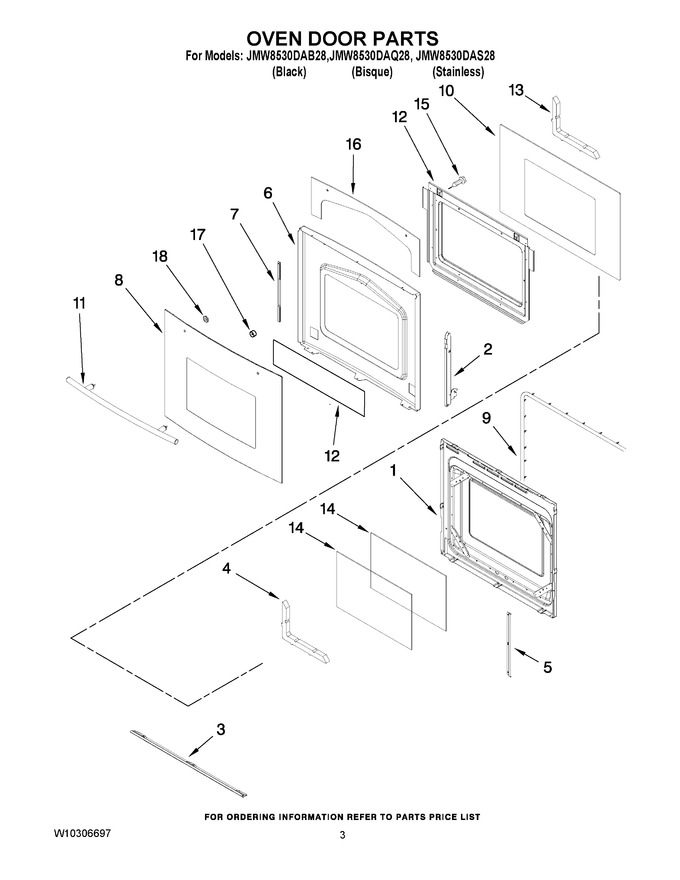

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Microwave Control Panel Parts


06 - Microwave Oven Parts


07 - Microwave Door Parts


08 - Latch Board Parts


09 - Oven Interior Parts


10 - Turntable Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2402W314-19		Liner-door		Appelez-nous	-
2	WP74010283		Hinge, Door   (Replaces: 7106P117-60)			Immediately	$ 97.29
3	3608F102-70		Trim, Btm Dr Vent		Appelez-nous	-
4	7002P246-60		Insulation, Door				$ 58.49
5	3801F886-51		Bracket, Inner Glass				$ 38.25
6	3603F073-70		Frame-door		Appelez-nous	-
7	3804F144-45		Retainer, Dr Glass		Appelez-nous	-
8	7922P020-60		Assy., Door Glass (black)				$ 265.38
8	7922P022-60		Assy., Door Glass (bisque)		Appelez-nous	-
8	W10202023		Assy., Door Glass (stainless)		Appelez-nous	-
9	WPW10162386		Gasket, Door   (Replaces: W10162386)			Immediately	$ 126.18
10	7902P656-60		Glass, Door (screened)		Appelez-nous	-
11	WP74008625		Handle, Door   (Replaces: 7701P473-60)				$ 229.64
12	3804F303-51		Retainer, Insul.				$ 61.18
13	3601F373-51		Baffle, Door				$ 244.22
14	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 162.53
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
16	7002P397-60		Insulation, Door (stainless Only)		Appelez-nous	-
17	WP3400029		Nut   (Replaces: 7103P176-60)			Immediately	$ 6.98
18	7109P082-60		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
