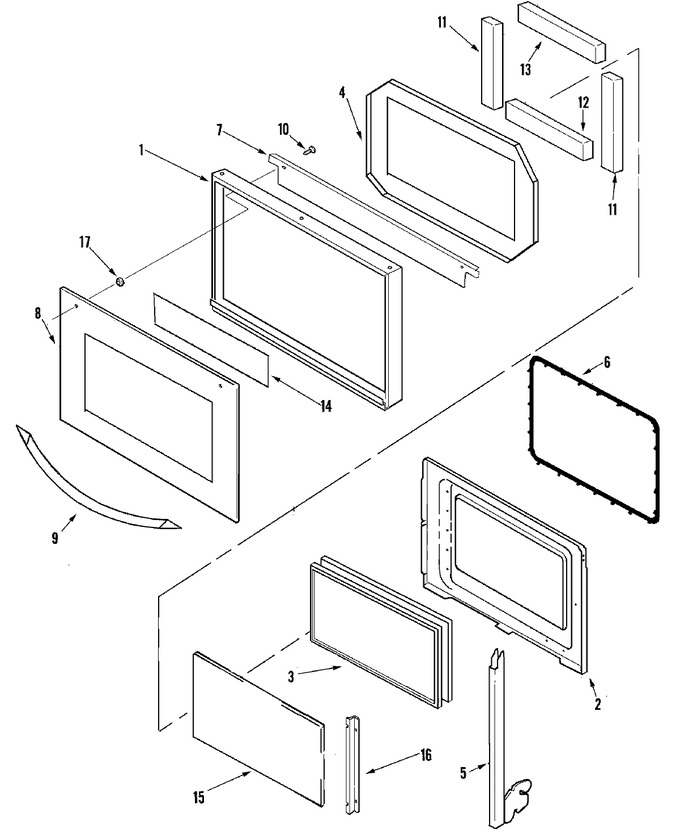

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74006751		Frame, Door (blk)	10	Appelez-nous	-
1	WPY706189		Screw   (Replaces: Y706189)	10		Immediately	$ 6.47
2	74005642		Liner, Oven Door	10	Appelez-nous	-
3	74005641		Window Assembly	10	Appelez-nous	-
4	74005648		Retainer, Insulation	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
5	W10828565		Screw, Black   (Replaces: 7101P270-60)	10			$ 6.70
5	WP74008014		Hinge, Door   (Replaces: 74008014)	10		Immediately	$ 129.55
6	WP71001841		Seal, Door   (Replaces: 71001841)	10		Immediately	$ 160.14
7	WP999367		Screw (no.10 X 3/4``)   (Replaces: 74004069)	10			$ 7.07
7	74008284		Bracket, Handle	10	Appelez-nous	-
8	74008282		Glass, Door (blk)	10			$ 141.56
9	74006964		Handle, Door (blk)	10	Appelez-nous	-
10	W10828565		Screw (blk)   (Replaces: 74009539)	10			$ 6.70
10	74009194		Washer, Handle	10			$ 18.96
11	74008285		Insulation, Door (side)	10			$ 8.86
12	74008286		Insulation, Door (btm)	10			$ 8.30
13	74008287		Insulation, (door-top)	10			$ 7.94
14	74008288		Heat Shield, Door	10	Appelez-nous	-
15	74008289		Glass, Door Inner	10	Appelez-nous	-
16	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
16	74003650		Retainer, Glass	10	Appelez-nous	-
21	WP71002286		Breaker, Circuit (20 Amp)   (Replaces: 71002286)	10			$ 70.95

    View Diagram in Separate Window       Print Part List
