Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP8172138 Tray, Glass   (Replaces: 53001023) Special Order $ 87.23

2 R0130605 Shaft, Turn Table Special Order $ 25.10

3 R0130677 Ring, Rotating Appelez-nous -
4 53001025 Motor, Turntable Appelez-nous -
5 R0654180 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

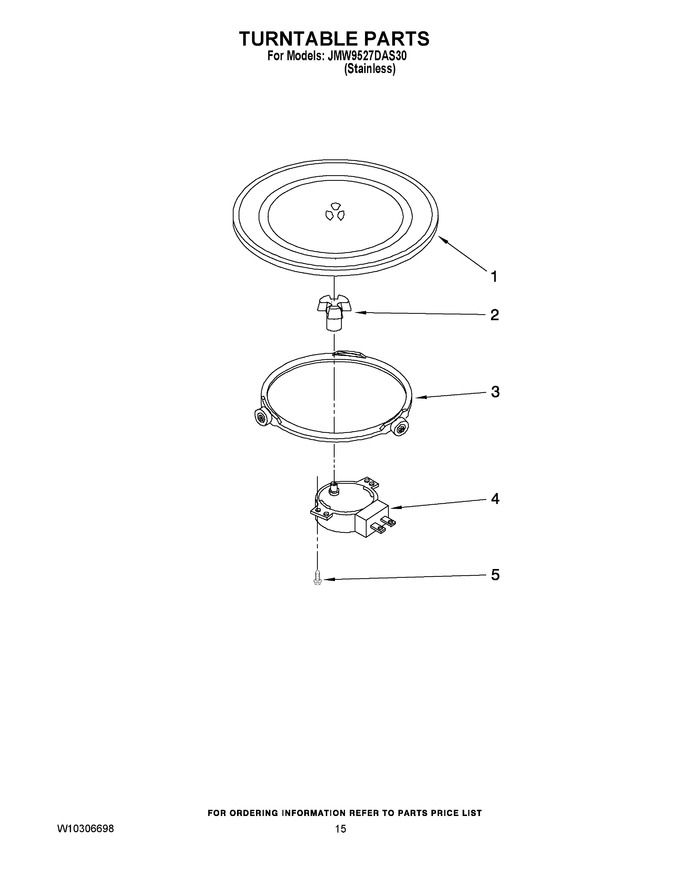

Diagram for JMW9527DAS30
