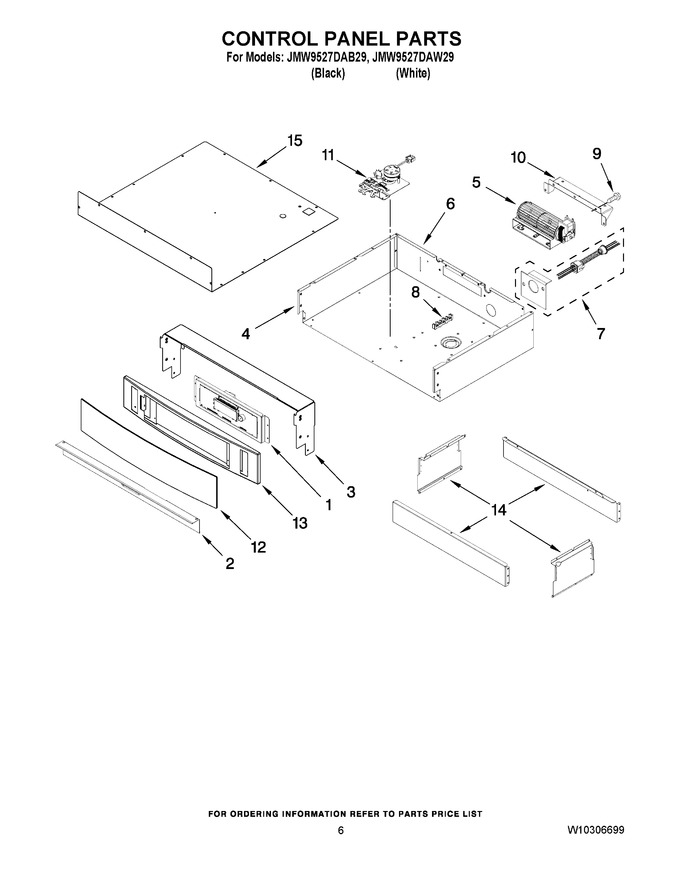

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74009716		Control, Single   (Replaces: 8507P346-60)			Immediately	$ 622.83
2	3608F106-70		Trim, Control Pnl		Appelez-nous	-
3	3807F717-51		Support, Top Cntrl				$ 31.22
4	2624F077-51		Panel, Cntrl Side (right)		Appelez-nous	-
4	2624F076-51		Panel, Cntrl Side (left)		Appelez-nous	-
5	WP74008383		Fan, Tangential   (Replaces: 7427P062-60)			Immediately	$ 181.53
6	W10187048		Panel, Control Box Rear   (Replaces: 2624F100-51)		Appelez-nous	-
7	5700P829-60		Assembly, Cable				$ 342.20
8	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)			Immediately	$ 31.65
9	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
10	3801F829-51		Brkt., Cooling Fan				$ 76.94
11	WPW10186996		Assy., Latch Door   (Replaces: W10186996)			Immediately	$ 330.95
12	7912P339-60		Glass, Control Pnl (black)		Appelez-nous	-
12	7912P349-60		Glass, Control Pnl (white)		Appelez-nous	-
13	3807W663-70		Frame, Cntrl Assy.		Appelez-nous	-
14	3804F250-51		Retainer, Mw (rear)		Appelez-nous	-
14	3804F235-51		Retainer, Mw (front)		Appelez-nous	-
14	3804F252-51		Retainer, Mw (left Side)		Appelez-nous	-
14	3804F251-51		Retainer, Mw (right Side)		Appelez-nous	-
15	2624F098-44		Pnl, Cntrl Box Top		Appelez-nous	-
