SELECT A DIAGRAM

01 - Cover


02 - Doors


03 - Cabinet

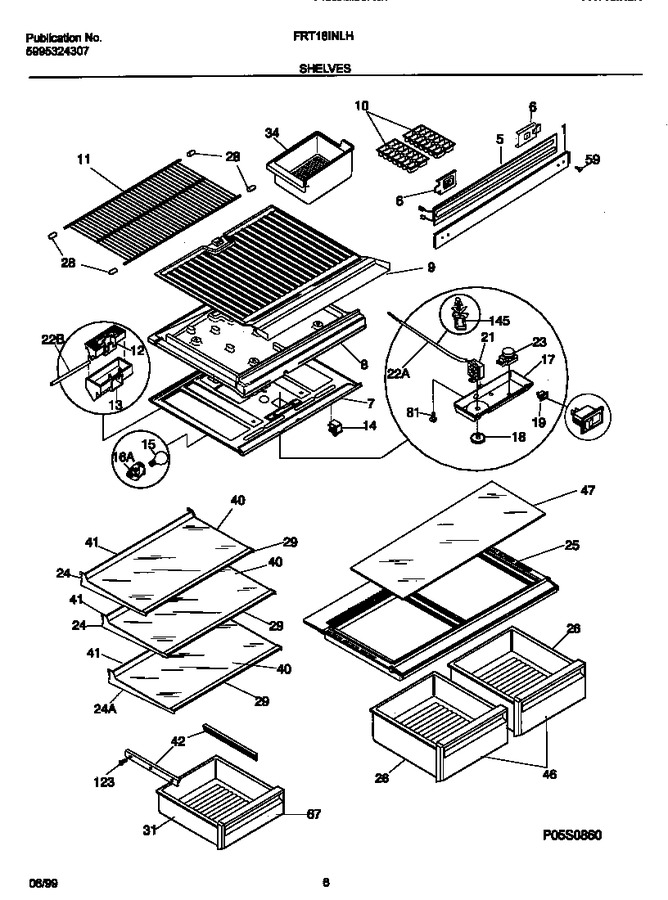

04 - Shelves


05 - System


06 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218874301		Mullion,white		Appelez-nous	-
5	218781003		ú Heater-mullion				$ 103.79
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218814800		Panel-top,refr Cavity		Appelez-nous	-
8	218872903		Divider,styrofoam ,w/foil Tape				$ 150.30
9	218814700		Panel-bottom,frzr Cavity				$ 288.94
10	215667501		Tray-ice,plasticoptional Access0ry			Immediately	$ 6.07
11	5303288242		Shelf, Freezer, Fixed/flat, Full Width, Wire				$ 403.31
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	5303321455		Control Box				$ 46.16
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature			Immediately	$ 164.57
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
23	215846602		Timer-defrost   (Replaces: 215846605)			Immediately	$ 28.20
24	215919171		Frame-full Shelf,cantilever ,w/hanger Tabs				$ 72.92
24	215919161		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303207340		Cover-crisper Pan, With Beam, Less Insert				$ 265.80
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
29	218830303		Trim-glass Shelf,24.92`` ,front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	5303001568		Container-ice		Appelez-nous	-
40	218498173		Glass-shelf,24.88`` X 14.57``		Appelez-nous	-
41	215919803		Trim-glass Shelf, 24.92``, Rear		Appelez-nous	-
46	5303307359		Front-crisper Pan				$ 59.59
47	218498174		Insert-pan Cover,24.60`` X 12.75`` ,glass		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
67	5303307363		Front-meat Pan				$ 142.33
81	5303001380		Screw		Appelez-nous	-
123	215005101		Screw-roller/hanger,8-10 X .438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*76171	218878500		Harness-wiring,control/divider				$ 105.99
*76172	5303299664		Spacer-shelf				$ 24.10
*76173	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
*76174	5303001260		Screw				$ 6.73
*76175	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
42A	218971202		Hanger-pan/tray,lh   (Replaces: 5304404462)				$ 60.96
42B	218971302		Hanger-pan/tray,rh   (Replaces: 5304404463)				$ 73.71

    View Diagram in Separate Window       Print Part List
