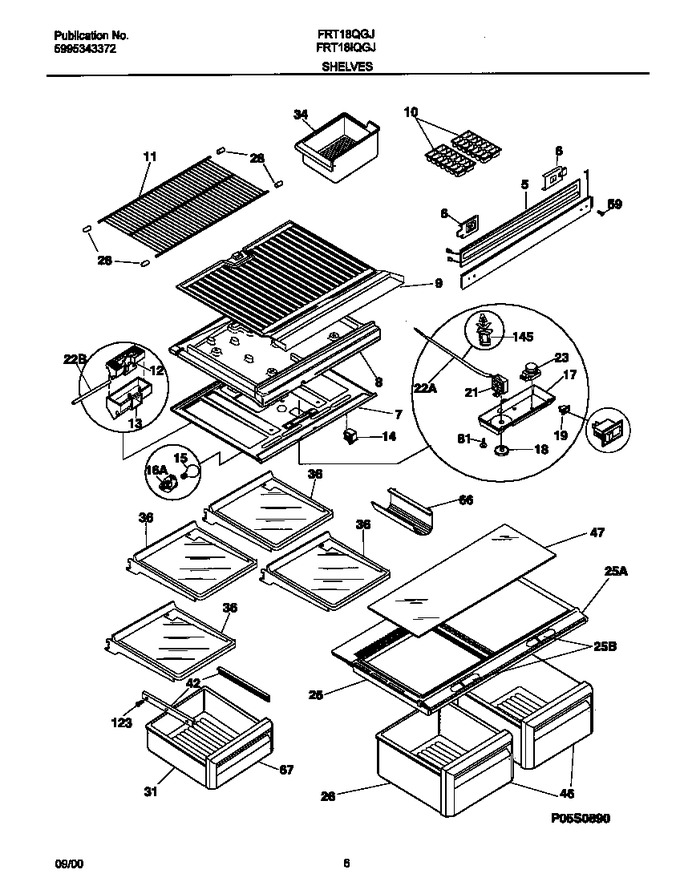

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218874301		Mullion,white		Appelez-nous	-
5	218781003		ú Heater-mullion				$ 103.79
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218814800		Panel-top,refr Cavity		Appelez-nous	-
8	218872903		Divider,styrofoam ,w/foil Tape				$ 150.30
9	218814700		Panel-bottom,frzr Cavity				$ 288.94
11	5303288242		Shelf, Freezer, Fixed/flat, Full Width, Wire				$ 403.31
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	5304414816		Control Box		Appelez-nous	-
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature   (Replaces: 5303321453)			Immediately	$ 164.57
22	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/21 Min   (Replaces: 215846605)			Immediately	$ 28.20
25	218905811		Trim-storage Pan Cvr,w/humidity Hole				$ 111.47
25	5303301393		Control-humidity		Appelez-nous	-
25	215686501		Cover-crisper Pan, With Beam		Appelez-nous	-
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
31	215742602		Pan-meat   (Replaces: 215742603)				$ 174.40
34	5303212918		Container-ice				$ 104.66
36	215406141		Shelf-``spill-safe``,cantilever ,half Width,fixed		Appelez-nous	-
46	215357609		Front-crisper Pan				$ 176.45
47	218498174		Insert-pan Cover,24.60`` X 12.75`` ,glass		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
66	241657701		Rack-wine   (Replaces: 5304402116)				$ 57.41
67	215357813		Front-meat Pan				$ 113.03
81	5303001380		Screw		Appelez-nous	-
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*37297	218878500		Wiring Harness,control/divider				$ 105.99
*37298	5303299664		Spacer-shelf				$ 24.10
*37299	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
*37300	5308016567		Nut-anchor		Appelez-nous	-
*37301	5303001260		Screw				$ 6.73
*37302	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
42A	218971202		Hanger-meat Pan,lh				$ 60.96
42B	218971302		Hanger-meat Pan,rh				$ 73.71

    View Diagram in Separate Window       Print Part List
