Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 54423-1 Orifice - Appelez-nous -
2 53837-1 Shield - Appelez-nous -
3 52077-10 Seal - Appelez-nous -
4 400015-12 Screw - Appelez-nous -
4 68247-2 Cover - Appelez-nous -
5 59920-1 Stud, Mounting Coil Cover - Appelez-nous -
6 68325-2 Insert - Appelez-nous -
7 67557-1 Plug Button - Appelez-nous -
8 66325-14 Seal, Foam Tray - Appelez-nous -
9 66325-21 Seal (44``) - Appelez-nous -
10 29814-2 Receptacle, Light - Appelez-nous -
11 W11679940 Bulb, Light   (Replaces: 68123-1) - In-Stock Immediately $ 10.17

12 56432-2 Switch - Appelez-nous -
13 68611-2 Shield, Light - Appelez-nous -
14 53687-2 Support - Appelez-nous -
15 54424-2 Support - Appelez-nous -
16 56488-4 Motor - Appelez-nous -
17 52120-1 Blade, Fan Frzr. - Appelez-nous -
18 64856-2 Bracket, Fan Motor - Appelez-nous -
19 68253-1 Grid, Fan - Appelez-nous -
19 WP489478 Screw   (Replaces: 400017-1) - Special Order $ 6.98

20 67335-7 Cover, Coil (lower) - Appelez-nous -
20 68612-1 Gasket - Appelez-nous -
21 WPM0114003 Clamp, Spring   (Replaces: 60333-4) - Special Order $ 9.95

22 65517-1 Clip - Appelez-nous -
23 26527-9 Drain Tube - Appelez-nous -
24 52526-1 Grommet - Appelez-nous -
25 53727-1 Retainer, Air Tunnel - Appelez-nous -
26 53727-1 Retainer, Air Tunnel - Appelez-nous -
27 66603-13 Shelf, Frz - Appelez-nous -
28 66603-23 Shelf, Frz - Appelez-nous -
29 52014-139 Trim - Appelez-nous -
29 67176-1 Trim, Frz. Shelf Front - Appelez-nous -
30 66637-30 Drawer - Appelez-nous -
31 68124-64 Insert, Pan - Appelez-nous -
32 WP61002140 Ice Cube Tray   (Replaces: 60112-1) - Special Order $ 18.23

33 66592-1 Pan - Appelez-nous -
34 68134-16 Insert - Appelez-nous -
35 68187-1 Cap, Connector - Appelez-nous -
36 WPB5705307 Tubing, Valve To Grommet   (Replaces: 67579-6) - Special Order $ 11.19

37 68396-1 Grommet - Appelez-nous -
38 68326-1 Cap, Fill Tube - Appelez-nous -
38 68304-2 Extension,grommet To Fill Tube - Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

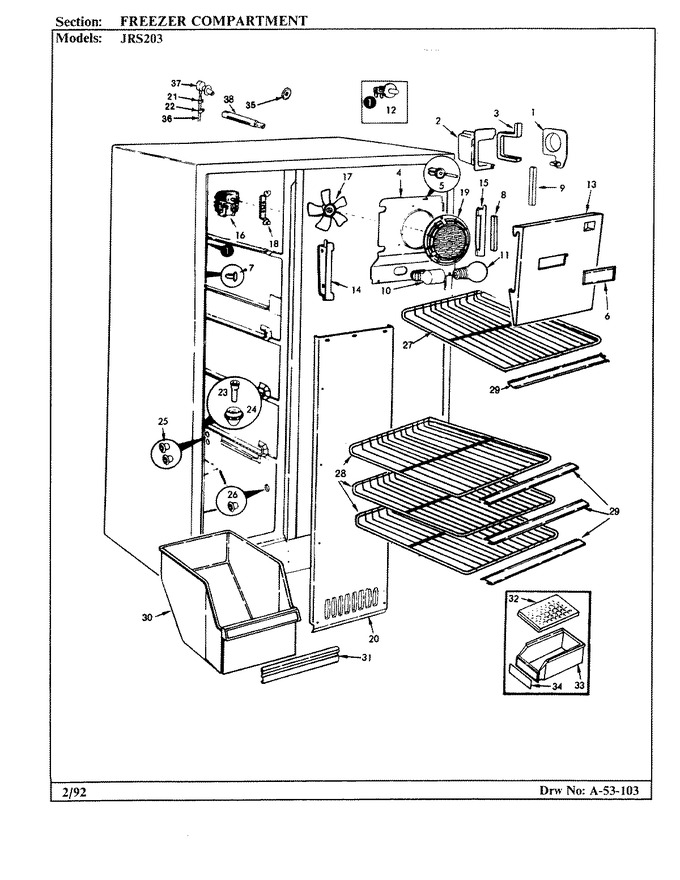

Diagram for JRS203 (BOM: AQ01B)
