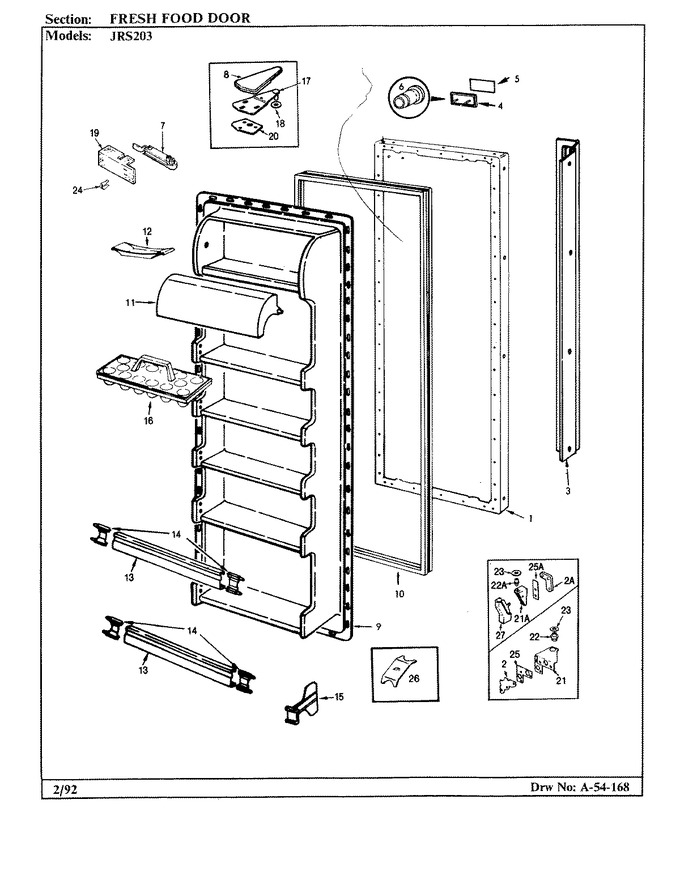

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72047-10-AM		Panel, F.f. Door (alm)	-	Appelez-nous	-
1	72047-10-WW		Panel, F.f. Door (wht)	-	Appelez-nous	-
2	65275-59		Screw	-	Appelez-nous	-
2	67874-1		Tapping Plate, Lower Hinge	-	Appelez-nous	-
3	65275-37		Screw, Handle	-	Appelez-nous	-
3	68661-2		Door Handle	-	Appelez-nous	-
4	66641-1		Bezel, Nameplate	-	Appelez-nous	-
5	68061-4		Insert, Nameplate	-	Appelez-nous	-
6	29356-1		Retainer, Nameplate	-	Appelez-nous	-
7	54485-1		Closer, Door	-	Appelez-nous	-
7	WP489478		Screw   (Replaces: 400017-1)	-			$ 6.98
8	65003-6		Cover, Upper Hinge (wht)	-	Appelez-nous	-
8	65003-3		Cover, Upper Hinge (alm)	-	Appelez-nous	-
9	65944-9		Liner, Door	-	Appelez-nous	-
9	65275-5		Screw	-	Appelez-nous	-
10	66929-6		Gasket	-	Appelez-nous	-
10	66184-457		Door, Dairy	-	Appelez-nous	-
12	29936-2		Tray, Butter	-	Appelez-nous	-
13	WP61003045		Trim, Shelf   (Replaces: 68410-26)	-			$ 129.55
14	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	-			$ 9.39
15	64097-10		Organizer, Shelf	-	Appelez-nous	-
16	60066-13		Tray, Egg	-	Appelez-nous	-
17	53709-22		Hinge, Upper	-	Appelez-nous	-
17	WP3-24838-048		Screw   (Replaces: 9986-87)	-			$ 7.00
18	WP52185-1		Washer   (Replaces: 52185-1)	-		Immediately	$ 9.47
19	52613-1		Insulation, Closer	-	Appelez-nous	-
20	65031-1		Shim, Upper Hinge	-	Appelez-nous	-
21	65275-51		Screw, Lower Hinge	-	Appelez-nous	-
21	68975-2		Hinge, Lower	-	Appelez-nous	-
22	68788-1		Hinge Pin	-	Appelez-nous	-
22	68977-1		Pin, Hinge	-	Appelez-nous	-
23	54233-1		Washer	-			$ 7.71
24	52614-1		Bracket, Closer	-	Appelez-nous	-
25	69031-2		Shim	-	Appelez-nous	-
26	66723-1		Clip	-	Appelez-nous	-
27	68978-1		Cover, Lower Hinge (blk)	-	Appelez-nous	-
