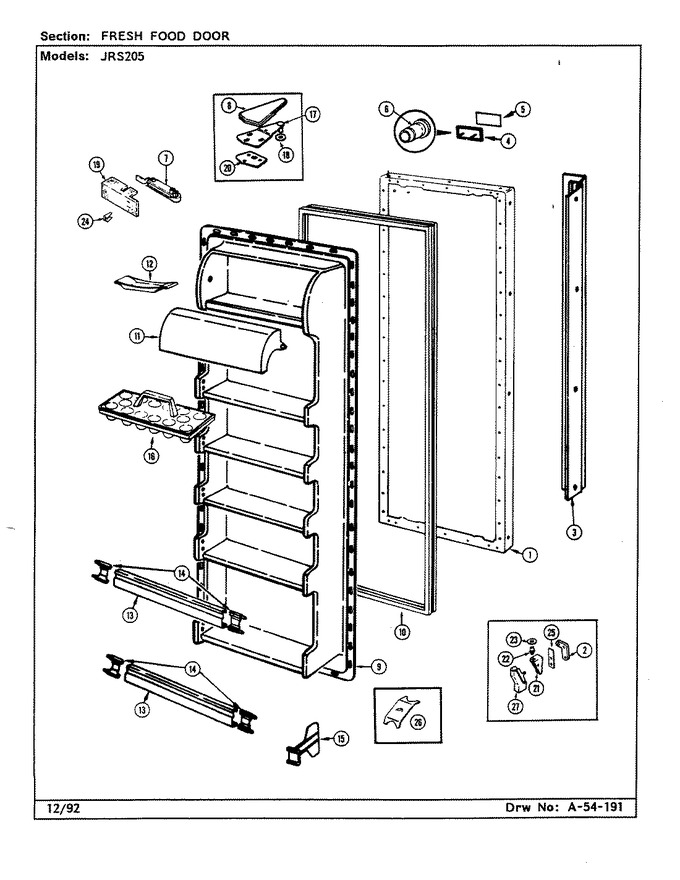

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72347-5-WW | Panel, Outer (white) | 10 |
|
- | ||||
| 2 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 2 | 65275-59 | Screw | 10 |
|
- | ||||
| 3 | 65275-37 | Screw, Handle | 10 |
|
- | ||||
| 3 | 69632-10 | Handle, Extruded | 10 |
|
- | ||||
| 4 | 66641-1 | Bezel, Nameplate | 10 |
|
- | ||||
| 5 | 68061-3 | Nameplate | 10 |
|
- | ||||
| 6 | 29356-1 | Retainer, Nameplate | 10 |
|
- | ||||
| 7 | 65275-4 | Screw | 10 |
|
- | ||||
| 7 | 69258-1 | Closer, Door | 10 |
|
- | ||||
| 8 | 65003-3 | Cover, Upper Hinge (alm) | 10 |
|
- | ||||
| 9 | 65275-5 | Screw | 10 |
|
- | ||||
| 9 | 69238-1 | Liner, F.f. Door | 10 |
|
- | ||||
| 10 | 70024-3 | Gasket | 10 |
|
- | ||||
| 11 | 69058-27 | Door, Dairy | 10 |
|
- | ||||
| 12 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 13 | WP61003045 | Trim, Shelf (Replaces: 68410-26) | 10 |
|
$ 129.55 | ||||
| 14 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 10 |
|
$ 9.39 | ||||
| 15 | 64097-15 | Organizer, Shelf | 10 |
|
- | ||||
| 16 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 17 | 53709-22 | Hinge, Upper | 10 |
|
- | ||||
| 17 | WP3-24838-048 | Screw (Replaces: 9986-87) | 10 |
|
$ 7.00 | ||||
| 18 | WP52185-1 | Washer (Replaces: 52185-1) | 10 |
|
Immediately | $ 9.47 | |||
| 19 | 52613-1 | Insulation, Closer | 10 |
|
- | ||||
| 20 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 21 | 69516-4 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 21 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 22 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 23 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 24 | 52614-1 | Bracket, Closer | 10 |
|
- | ||||
| 25 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 26 | 66723-1 | Clip | 10 |
|
- | ||||
| 27 | 68978-4 | Cover, Lower Hinge (wht) | 10 |
|
- |
