SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit (ice)


06 - Shelves & Accessories


07 - Unit Compartment & System


08 - Wiring Information

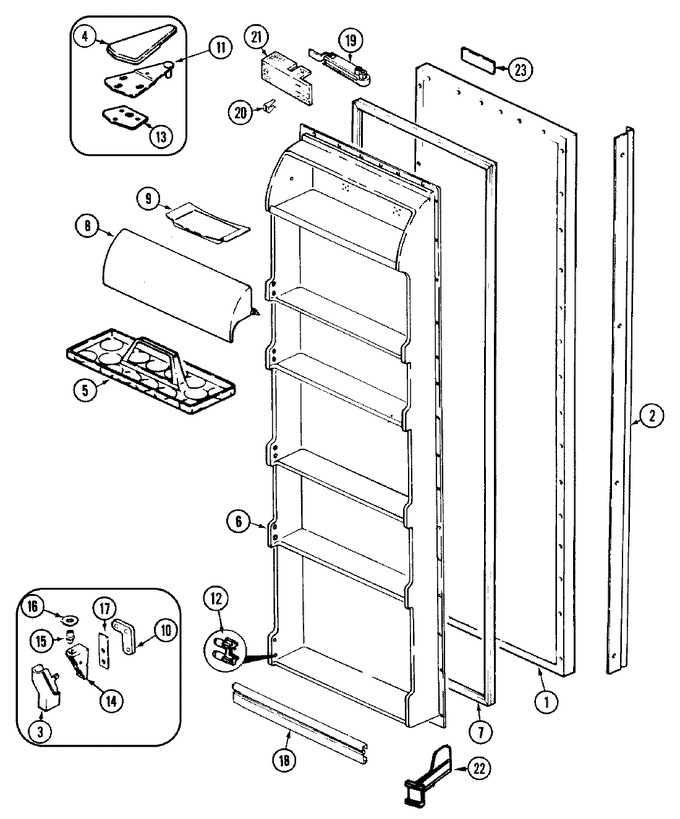

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72347-5-AM		Panel, Outer (almond)	10	Appelez-nous	-
1	495034-900		Plug Button, Door	10	Appelez-nous	-
2	65275-37		Screw, Handle	10	Appelez-nous	-
2	70305-17		Handle (alm)	10	Appelez-nous	-
3	68978-3		Cover, Lower Hinge (alm)	10	Appelez-nous	-
4	70121-3		Cover, Upper Hinge (alm)	10	Appelez-nous	-
5	60066-1		Tray, Egg	10	Appelez-nous	-
6	69238-1		Liner, F.f. Door	10	Appelez-nous	-
6	65275-5		Screw	10	Appelez-nous	-
7	70024-3		Gasket	10	Appelez-nous	-
8	69058-27		Door, Dairy	10	Appelez-nous	-
9	29936-2		Tray, Butter	10	Appelez-nous	-
10	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
10	65275-59		Screw	10	Appelez-nous	-
11	53709-22		Hinge, Upper	10	Appelez-nous	-
11	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
12	70197-1		Retainer, Shelf Trim	10		Immediately	$ 14.18
13	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
14	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
14	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
15	69845-1		Pin, Lower Hinge	10			$ 44.55
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
17	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
18	WP70111-108		Trim, Shelf   (Replaces: 70111-89)	10		Immediately	$ 104.35
19	69258-1		Closer, Door	10	Appelez-nous	-
19	414004-1		Screw	10	Appelez-nous	-
20	69261-1		Bracket, Closer	10	Appelez-nous	-
21	52613-1		Insulation, Closer	10	Appelez-nous	-
21	70049-1		Insulation Door	10	Appelez-nous	-
22	70114-1		Organizer, Shelf	10	Appelez-nous	-
23	68061-10		Nameplate	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
