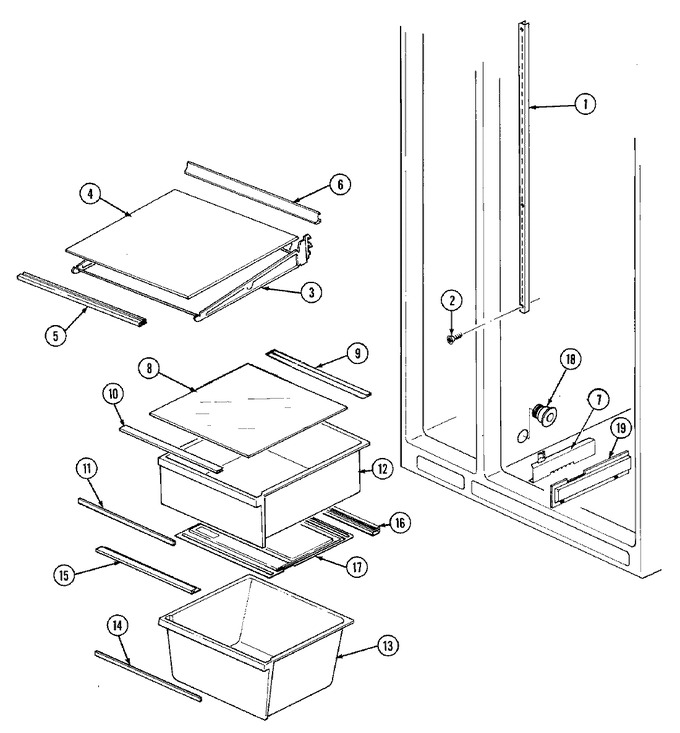

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67311-1 | Rail, Shelf Support | 10 |
|
- | ||||
| 2 | 400037-28 | Screw | 10 |
|
- | ||||
| 3 | 70106-6 | Frame, Shelf | 10 |
|
- | ||||
| 4 | 68139-30 | Glass, Cantilever Shelf | 10 |
|
- | ||||
| 5 | 70107-4 | Trim, Shelf | 10 |
|
- | ||||
| 6 | 70110-4 | Trim, Shelf | 10 |
|
- | ||||
| 7 | 65736-1 | Slide Control, (meat) | 10 |
|
- | ||||
| 8 | 65687-5 | Shelf, Crisper | 10 |
|
- | ||||
| 9 | 68157-1 | Seal, Crisper Pan (rear) | 10 |
|
- | ||||
| 10 | 66650-1 | Trim | 10 |
|
- | ||||
| 11 | 68124-66 | Insert, Meat Pan | 10 |
|
- | ||||
| 12 | 66637-53 | Pan, Crisper | 10 |
|
- | ||||
| 13 | 66637-52 | Pan, Meat | 10 |
|
- | ||||
| 14 | 68124-66 | Insert, Meat Pan | 10 |
|
- | ||||
| 15 | 65648-1 | Seal, Meat Pan (front) | 10 |
|
- | ||||
| 16 | 65649-1 | Seal, Meat Pan (rear) | 10 |
|
- | ||||
| 17 | 65608-5 | Cover, Meat Pan | 10 |
|
- | ||||
| 18 | 53726-2 | Tunnel, Air (meat) | 10 |
|
- | ||||
| 19 | 65737-2 | Control Housing | 10 |
|
- | ||||
| 19 | 56686-5 | Clip, Secondary Seal | 10 |
|
- |
