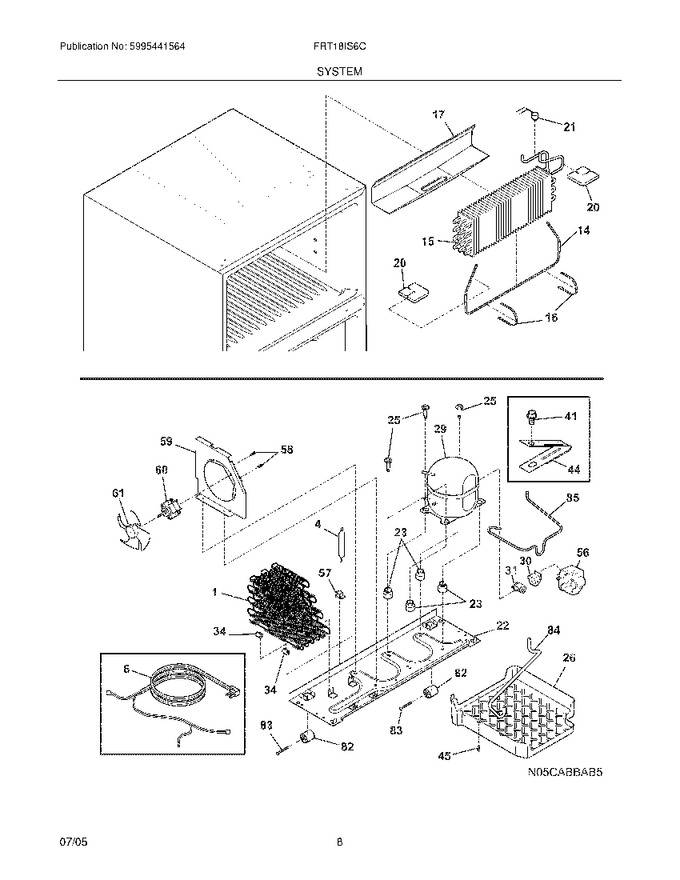

09 - System


11 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	240581701		Harness-wiring,machine Compt				$ 113.59
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	241801301		Trough-drain   (Replaces: 241551801)				$ 64.46
20	241551901		Insulation Block		Appelez-nous	-
22	241602001		Base-compressor		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	240491501		Screw-compressor Mtg,1/4-28 X 1.16 ,shoulder,typ Cf		Appelez-nous	-
26	241920605		Pan-defrost Drain   (Replaces: 240332608)				$ 53.76
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433202)				$ 15.17
44	5303001199		Clamp-wiring Harness,strain Relief ,galv Steel				$ 65.92
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
56	240582001		Cover-terminal		Appelez-nous	-
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
59	5304430246		Bracket-cond Motor Assy		Appelez-nous	-
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
84	240500801		Tube-drain,rubber ,lower				$ 65.21
85	240493101		Tube-connector,suction				$ 85.95
F1	240444401		Condenser,dynamic		Appelez-nous	-
F14	5303918208		Defrost Heater Kit			Immediately	$ 109.15
F15	5303918274		Evaporator Kit			Immediately	$ 423.67
F21	5303918202		Thermostat-defrost,kit			Immediately	$ 20.21
F29	5303918297		Compressor,w/electricals		Appelez-nous	-
F30	5304433579		Relay				$ 35.39
F31	216954208		Overload Protector   (Replaces: 5304433578)				$ 74.42
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F60	5303918774		Motor,condensor Fan   (Replaces: 240525402)			Immediately	$ 186.30
F61	240524102		Fan Blade,galv Steel ,condenser Fan   (Replaces: 240524101)			Immediately	$ 39.43
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	241520701		Harness-wiring,freezer				$ 95.97
NI	240581801		Harness-wiring,compressor				$ 298.39
NI	5303918263		Heat Exchanger Kit,suction Line				$ 461.16
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	240346701		Tape-foam Seal,shroud				$ 29.77
NI	240359401		Screw-fan Shroud,(2)		Appelez-nous	-
