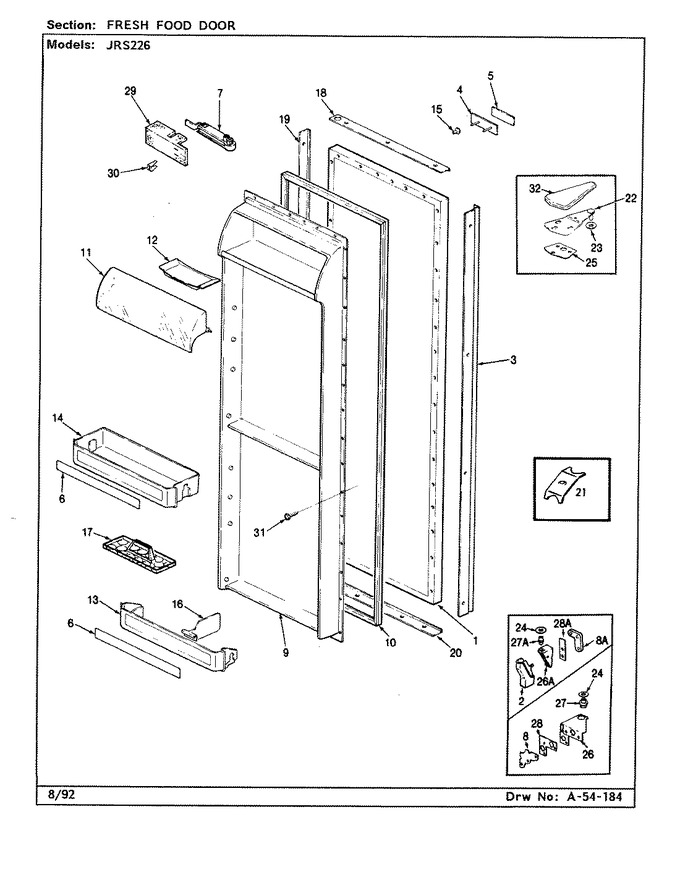

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72048-1-WW | Panel, Outer Door | - |
|
- | ||||
| 1 | 72048-1-AM | Panel, Outer Door | - |
|
- | ||||
| 3 | 68658-3 | Handle | - |
|
- | ||||
| 3 | 65275-37 | Screw, Handle | - |
|
- | ||||
| 4 | 68060-1 | Bezel | - |
|
- | ||||
| 5 | 68061-4 | Insert, Nameplate | - |
|
- | ||||
| 6 | 68121-43 | Insert, Shelf Door | - |
|
- | ||||
| 7 | 54485-1 | Closer, Door | - |
|
- | ||||
| 7 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 8 | 65275-59 | Screw | - |
|
- | ||||
| 8 | 65964-2 | Tapping Plate | - |
|
- | ||||
| 9 | 65943-7 | Liner, Door | - |
|
- | ||||
| 10 | 66929-2 | Gasket | - |
|
- | ||||
| 11 | 66184-461 | Door, Dairy | - |
|
- | ||||
| 12 | 29936-2 | Tray, Butter | - |
|
- | ||||
| 13 | 65781-6 | Shelf Front | - |
|
- | ||||
| 14 | 65782-6 | Shelf, Pick-off | - |
|
- | ||||
| 15 | 29356-1 | Retainer, Nameplate | - |
|
- | ||||
| 16 | 66645-5 | Shelf, Pick-off | - |
|
- | ||||
| 17 | 60066-13 | Tray, Egg | - |
|
- | ||||
| 18 | 68203-2 | Trim, Perimeter (top) | - |
|
- | ||||
| 19 | 68205-4 | Trim, Perimeter (side) | - |
|
- | ||||
| 20 | 68204-2 | Trim, Perimeter (bottom) | - |
|
- | ||||
| 21 | 65275-45 | Screw | - |
|
- | ||||
| 21 | 66723-1 | Clip | - |
|
- | ||||
| 22 | 53709-22 | Hinge, Upper | - |
|
- | ||||
| 22 | WP3-24838-048 | Screw (Replaces: 65275-52) | - |
|
$ 7.00 | ||||
| 23 | WP52185-1 | Washer (Replaces: 52185-1) | - |
|
Immediately | $ 9.47 | |||
| 24 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | - |
|
Immediately | $ 45.86 | |||
| 25 | 65031-1 | Shim, Upper Hinge | - |
|
- | ||||
| 26 | 67714-10 | Hinge, Lower | - |
|
- | ||||
| 26 | 403100-1 | Screw | - |
|
- | ||||
| 27 | 68788-1 | Hinge Pin | - |
|
- | ||||
| 28 | 60626-1 | Shim, Lower Hinge | - |
|
- | ||||
| 29 | 52613-1 | Insulation, Closer | - |
|
- | ||||
| 30 | 52614-1 | Bracket, Closer | - |
|
- | ||||
| 31 | 65275-5 | Screw | - |
|
- | ||||
| 32 | 65003-3 | Cover, Upper Hinge (alm) | - |
|
- | ||||
| 32 | 65003-6 | Cover, Upper Hinge (wht) | - |
|
- |
