Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP489399 Screw   (Replaces: 401024-1) - Special Order $ 6.26

1 67692-1 Insulation, Control - Appelez-nous -
1 56428012 Control, Temperature   (Replaces: 52881-25) - Special Order $ 52.86

2 WP489478 Screw   (Replaces: 400017-1) - Special Order $ 6.98

2 53682-10 Housing, Temperature Control - Appelez-nous -
3 29893-7 Knob, Temp. Control - Appelez-nous -
4 53835-2 Orifice, Freezer Control - Appelez-nous -
5 58767-1 Insulation, Housing - Appelez-nous -
6 68613-1 Baffle - Appelez-nous -
7 52648-1 Spring, Baffle - Appelez-nous -
8 400053-1 Screw - Appelez-nous -
8 67354-1 Housing, Frz. Control - Appelez-nous -
9 29893-12 Knob - Appelez-nous -
10 400001-1 Screw - Appelez-nous -
11 W10887190 Bulb, Light (60w)   (Replaces: 55771-2) - In-Stock Immediately $ 16.48

12 68974-2 Receptacle, Light - Appelez-nous -
13 69081-2 Housing - Appelez-nous -
13 WP489478 Screw   (Replaces: 400017-1) - Special Order $ 6.98

14 57410-1 Tunnel - Appelez-nous -
15 57411-1 Retainer - Appelez-nous -
16 65578-22 Shield, Light - Appelez-nous -
17 WP489478 Screw   (Replaces: 400017-1) - Special Order $ 6.98

17 53686-2 Support - Appelez-nous -
18 68916-1 Light Switch - Appelez-nous -
19 62128-1 Air Deflector - Appelez-nous -
20 28013-2 Rivet, Air Tunnel - Appelez-nous -
21 53726-1 Air Tunnel - Appelez-nous -
22 W11117769 Leg, Leveling   (Replaces: 68664-1) - In-Stock Immediately $ 16.61

23 29834-2 Wheel - Appelez-nous -
24 64965-3 Pin, Wheel (rear) - Appelez-nous -
25 62794-1 Bracket, Wheel - Appelez-nous -
26 WP33002917 Screw   (Replaces: 65275-1) - In-Stock Immediately $ 6.90

26 62795-1 Faceplate Bracket - Appelez-nous -
27 56487-5 Screw, Wheel Adjustment - Appelez-nous -
28 59101-1 Tapping Plate, Wheel - Appelez-nous -
29 64965-1 Pin, Wheel - Appelez-nous -
30 67255-2 Support Rail Rear - Appelez-nous -
30 3400518 Screw   (Replaces: 65275-42) - Special Order $ 11.68

31 58437-52 Kickplate - Appelez-nous -
32 60100-1 Clip, Kickplate - Special Order $ 5.85

32 WP489478 Screw   (Replaces: 400017-1) - Special Order $ 6.98


    View Diagram in Separate Window     Print Icon   Print Part List

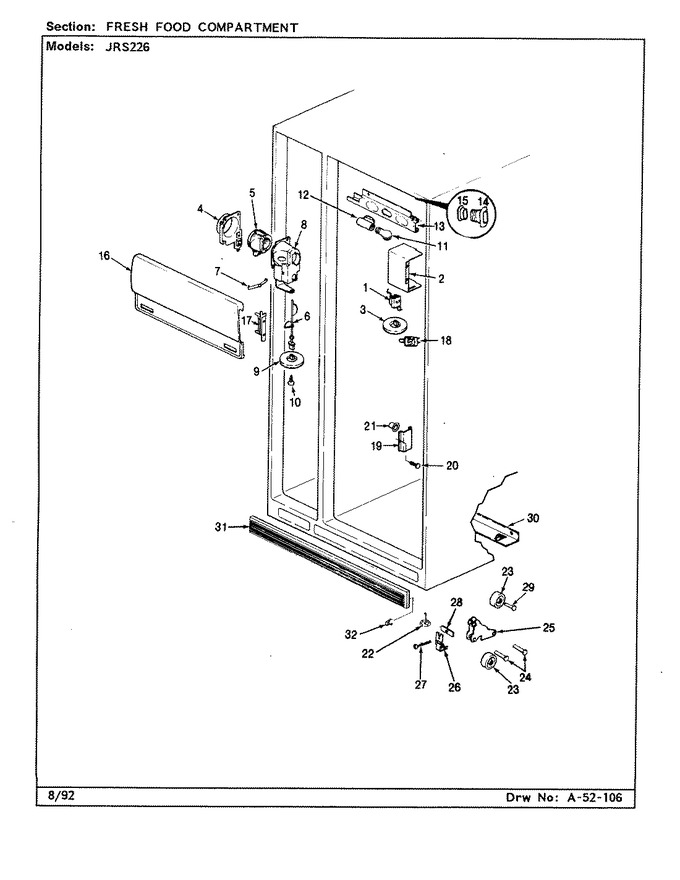

Diagram for JRS226 (BOM: BQ21A)
