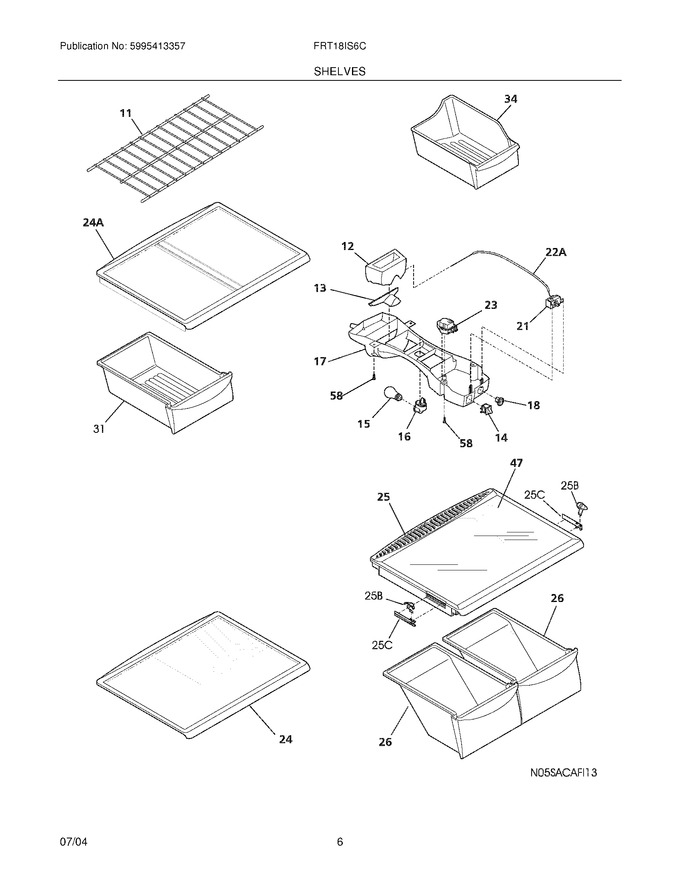

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358002		Shelf-freezer,full Width		Appelez-nous	-
12	241542001		Diffuser,air ,top			Immediately	$ 74.42
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 20.48
16	241559801		Socket-light				$ 72.68
17	240352701		Control Box		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
24	240358926		Shelf-``spill-safe``,sliding   (Replaces: 240358905)			Immediately	$ 129.17
25	240364787		Cover-crisper Pan   (Replaces: 240364714)			Immediately	$ 120.98
26	240337103		Pan-crisper,clear ,(2) ,no Graphics			Immediately	$ 148.35
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240530803)			Immediately	$ 135.77
34	240385201		Container,ice Bin				$ 97.83
47	240350608		Insert-pan Cover,glass   (Replaces: 240350643)			Immediately	$ 45.50
58	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
24A	240358926		Shelf-``spill-safe``,sliding ,w/pan Hanger   (Replaces: 240358906)			Immediately	$ 129.17
25B	5304492617		Control-humidity   (Replaces: 240361201)			Immediately	$ 8.69
25C	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
F14	241554901		Switch-light/lamp				$ 70.88
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	215846602		Timer-defrost   (Replaces: 240371001)			Immediately	$ 28.20
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	240568606		Seal   (Replaces: 240568607)				$ 12.76
NI	5303299664		Spacer-shelf				$ 24.10
