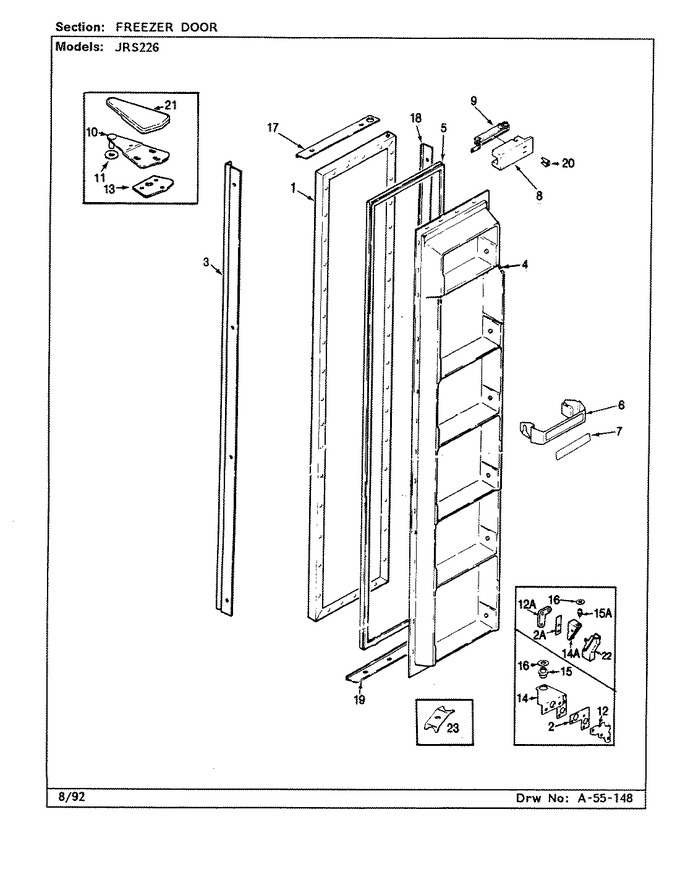

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72046-21-WW		Panel, Outer Door	-	Appelez-nous	-
1	72046-21-AM		Panel, Outer Door	-	Appelez-nous	-
2	69031-4		Shim	-	Appelez-nous	-
3	68658-4		Handle	-	Appelez-nous	-
3	65275-37		Screw, Handle	-	Appelez-nous	-
4	65275-5		Screw	-	Appelez-nous	-
4	65678-4		Liner, Door	-	Appelez-nous	-
5	66929-28		Gasket	-	Appelez-nous	-
6	65701-9		Shelf Front	-	Appelez-nous	-
7	68121-44		Insert, Pick Off Front	-	Appelez-nous	-
8	52613-1		Insulation, Closer	-	Appelez-nous	-
9	WP489478		Screw   (Replaces: 400017-1)	-			$ 6.98
9	54485-2		Door Closure	-	Appelez-nous	-
10	WP3-24838-048		Screw   (Replaces: 65275-52)	-			$ 7.00
10	53709-22		Hinge, Upper	-	Appelez-nous	-
11	WP52185-1		Washer   (Replaces: 52185-1)	-		Immediately	$ 9.47
12	67874-1		Tapping Plate, Lower Hinge	-	Appelez-nous	-
12	65275-59		Screw	-	Appelez-nous	-
13	65031-1		Shim, Upper Hinge	-	Appelez-nous	-
14	68975-2		Hinge, Lower	-	Appelez-nous	-
14	65275-51		Screw, Lower Hinge	-	Appelez-nous	-
15	68977-1		Pin, Hinge	-	Appelez-nous	-
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	-		Immediately	$ 45.86
17	68201-2		Trim, Perimeter	-	Appelez-nous	-
18	68205-3		Trim, Perimeter	-	Appelez-nous	-
19	65275-71		Screw	-	Appelez-nous	-
19	68202-2		Trim, Perimeter	-	Appelez-nous	-
20	52614-1		Bracket, Closer	-	Appelez-nous	-
21	65003-6		Cover, Upper Hinge (wht)	-	Appelez-nous	-
21	65003-3		Cover, Upper Hinge (alm)	-	Appelez-nous	-
22	68978-1		Cover, Lower Hinge (blk)	-	Appelez-nous	-
23	66799-1		Achor, Screw	-	Appelez-nous	-
