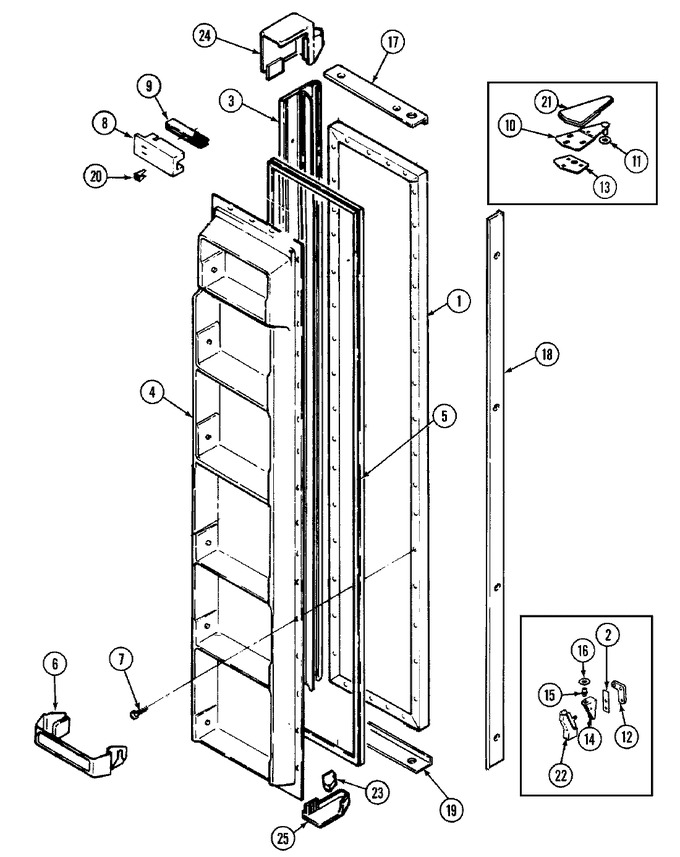

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72346-8-WW | Panel, Frz. Door (wht) | 10 |
|
- | ||||
| 2 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 3 | 65275-37 | Screw, Handle | 10 |
|
- | ||||
| 3 | 69636-1 | Trim, Handle | 10 |
|
- | ||||
| 3 | 69914-1 | Handle Assy. (w/trim) | 10 |
|
- | ||||
| 4 | 69247-1 | Liner | 10 |
|
- | ||||
| 5 | 70024-1 | Gasket | 10 |
|
- | ||||
| 6 | 69870-2 | Front, Pick-off Shelf | 10 |
|
- | ||||
| 7 | 65275-5 | Screw | 10 |
|
- | ||||
| 8 | 70049-1 | Insulation Door | 10 |
|
- | ||||
| 8 | 52613-1 | Insulation, Closer | 10 |
|
- | ||||
| 9 | 69258-1 | Closer, Door | 10 |
|
- | ||||
| 9 | 414004-1 | Screw | 10 |
|
- | ||||
| 10 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 10 | 53709-22 | Hinge, Upper | 10 |
|
- | ||||
| 11 | WP52185-1 | Washer (Replaces: 52185-1) | 10 |
|
Immediately | $ 9.47 | |||
| 12 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 12 | 65275-59 | Screw | 10 |
|
- | ||||
| 13 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 14 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 14 | 69516-4 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 15 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 16 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 17 | 69631-6 | Trim, Perimeter | 10 |
|
- | ||||
| 18 | 69631-1 | Trim, Perimeter | 10 |
|
- | ||||
| 19 | 65275-71 | Screw | 10 |
|
- | ||||
| 19 | 69631-7 | Trim, Perimeter | 10 |
|
- | ||||
| 20 | 69261-1 | Bracket, Closer | 10 |
|
- | ||||
| 21 | 65003-6 | Cover, Upper Hinge (wht) | 10 |
|
- | ||||
| 22 | 68978-4 | Cover, Lower Hinge (wht) | 10 |
|
- | ||||
| 23 | 69815-2 | Filler, Lower Endcap | 10 |
|
- | ||||
| 24 | 69912-2 | Upper Endcap Assembly | 10 |
|
- | ||||
| 24 | 69638-1 | Insert, Nameplate | 10 |
|
- | ||||
| 25 | 69910-4 | Lower End Cap Assebmly | 10 |
|
- |
