SELECT A DIAGRAM

01 - Freezer Compartment

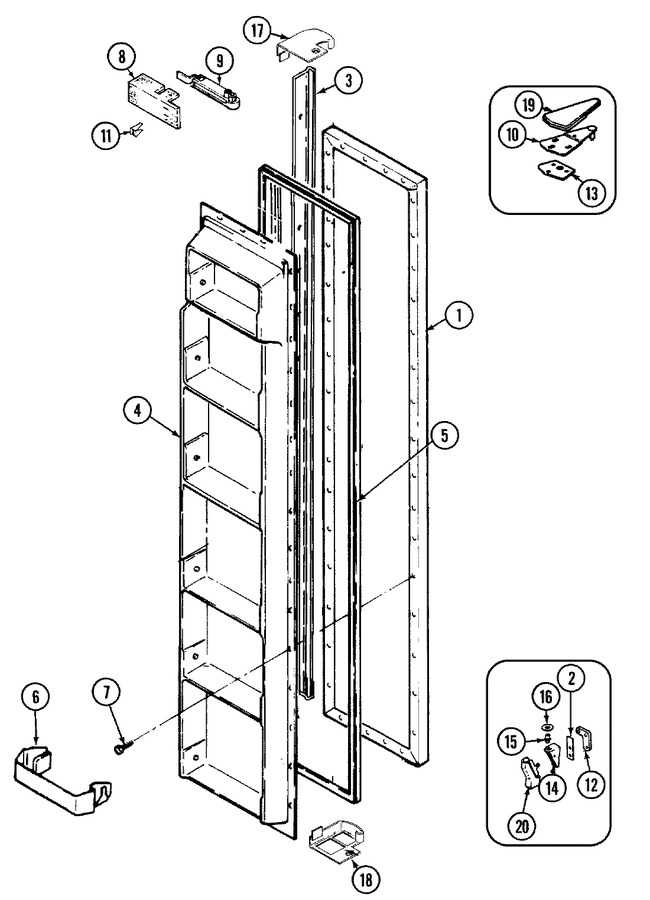

02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit (ice)


06 - Shelves & Accessories


07 - Unit Compartment & System


08 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	495034-900		Plug Button, Door	10	Appelez-nous	-
1	72446-706-BK		Panel, Frz. Door (blk)	10	Appelez-nous	-
2	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
3	65275-37		Screw, Handle	10	Appelez-nous	-
3	70305-1		Handle (blk)	10	Appelez-nous	-
4	69247-1		Liner	10	Appelez-nous	-
5	70024-9		Gasket------na	10	Appelez-nous	-
6	69870-2		Front, Pick-off Shelf	10	Appelez-nous	-
7	65275-5		Screw	10	Appelez-nous	-
8	52613-1		Insulation, Closer	10	Appelez-nous	-
8	70049-1		Insulation Door	10	Appelez-nous	-
9	414004-1		Screw	10	Appelez-nous	-
9	69258-1		Closer, Door	10	Appelez-nous	-
10	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
10	53709-22		Hinge, Upper	10	Appelez-nous	-
11	69261-1		Bracket, Closer	10	Appelez-nous	-
12	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
12	65275-59		Screw	10	Appelez-nous	-
13	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
14	69516-2		Hinge, Lower (blk)	10	Appelez-nous	-
14	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
15	69845-1		Pin, Lower Hinge	10			$ 44.55
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
17	70306-1		End Cap, Handle	10	Appelez-nous	-
17	65275-85		Screw	10	Appelez-nous	-
18	70306-2		End Cap, Handle	10	Appelez-nous	-
19	70121-6		Cover, Upper Hinge (blk)	10	Appelez-nous	-
20	68978-1		Cover, Lower Hinge (blk)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
