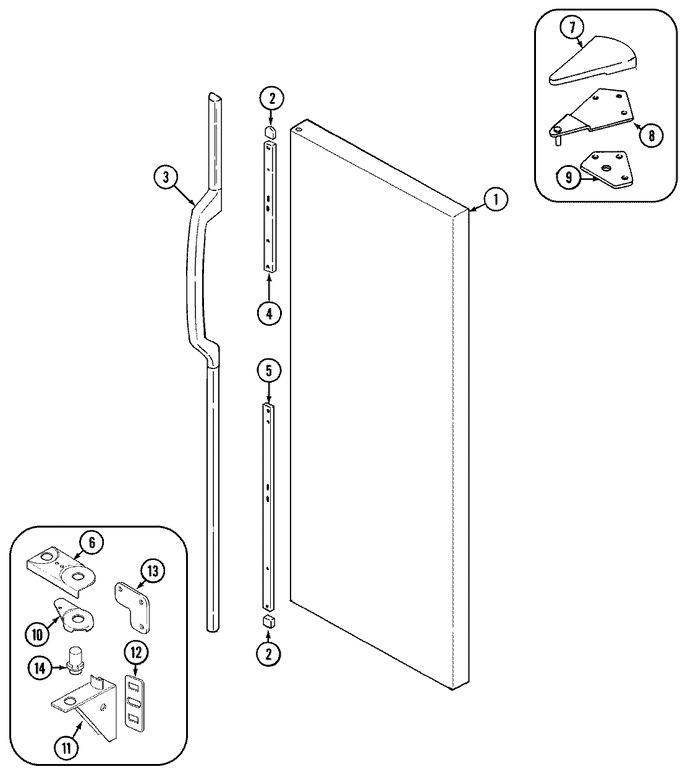

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	495034-900		Plug Button, Door	10	Appelez-nous	-
1	61001388		Panel, F.f. Door (alm)	10	Appelez-nous	-
2	69590-1		End Cap, Handle	10	Appelez-nous	-
3	12000043		Kit, Handle Assy (almond)	10	Appelez-nous	-
4	69586-3		Trim, Handle Ext. (upper)	10	Appelez-nous	-
5	69586-4		Trim, Handle Ext. (lower)	10	Appelez-nous	-
5	W10856122		Screw   (Replaces: 65275-80)	10			$ 6.98
6	61001316		Stop, Door	10	Appelez-nous	-
6	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
7	61001373		Cover, Upper Hinge (alm)	10	Appelez-nous	-
8	61001319		Hinge, Upper	10	Appelez-nous	-
8	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
9	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
10	61001320		Bushing, Lower Hinge	10	Appelez-nous	-
11	61001321		Hinge, Lower	10	Appelez-nous	-
11	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
12	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
13	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
13	65275-59		Screw	10	Appelez-nous	-
14	61001322		Pin, Lower Hinge	10	Appelez-nous	-
