SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Ice & Water Dispenser


08 - Ice Crusher & Bin


09 - Ice Maker


10 - Shelves & Accessories


11 - Unit Compartment & System


12 - Wiring Information

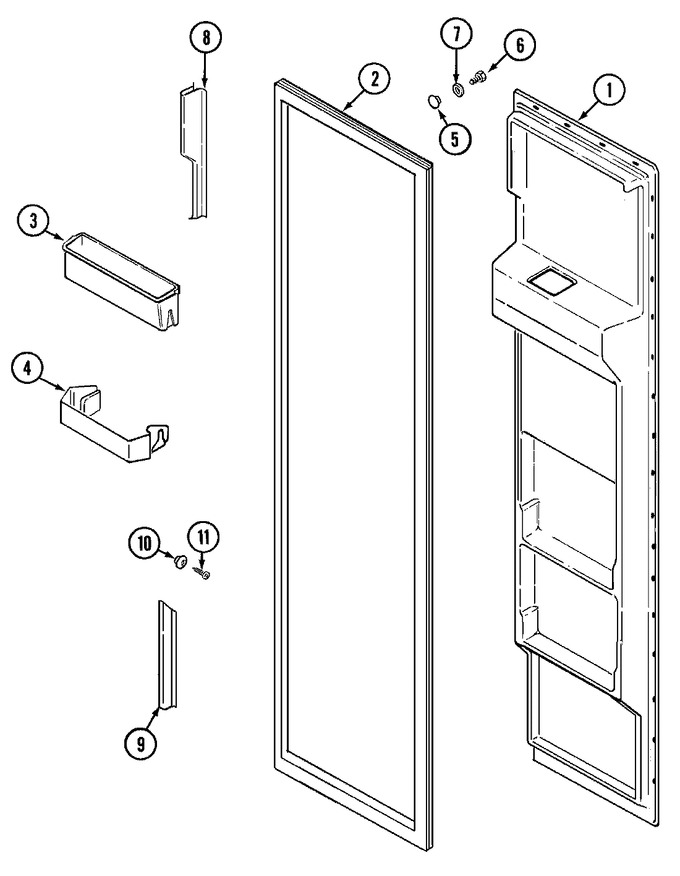

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61001344		Liner, Frz. Door	10	Appelez-nous	-
1	65275-5		Screw	10	Appelez-nous	-
2	70024-2		Gasket, Frz. Door	10	Appelez-nous	-
3	61001395		Shelf, Pick-off	10	Appelez-nous	-
4	69870-3		Front, Pick-off Shelf	10	Appelez-nous	-
5	65660-2		Stud, Pick-off Shelf	10	Appelez-nous	-
6	WP90767		Screw   (Replaces: 400014-1)	10		Immediately	$ 7.04
7	420028-1		Washer	10	Appelez-nous	-
8	61001346		Dyke, Door (upper)	10	Appelez-nous	-
9	61001347		Dyke, Door (lower)	10	Appelez-nous	-
10	61001350		Stud, Pick-off Shelf	10	Appelez-nous	-
11	WP98165		Screw   (Replaces: 61001351)	10			$ 7.20

    View Diagram in Separate Window       Print Part List
