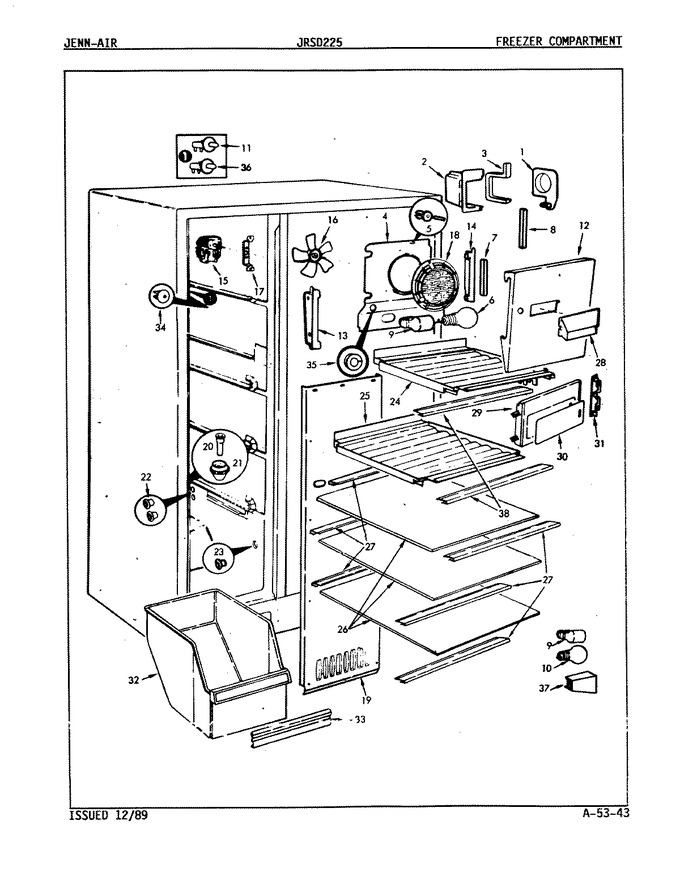

01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Unit Compartment & System
06 - Water & Ice Dispenser
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 54423-1 | Orifice | - |
|
- | ||||
| 2 | 53837-1 | Shield | - |
|
- | ||||
| 3 | 52077-10 | Seal | - |
|
- | ||||
| 4 | 400015-12 | Screw | - |
|
- | ||||
| 4 | 62690-35 | Cover, Coil | - |
|
- | ||||
| 5 | 59920-1 | Stud, Mounting Coil Cover | - |
|
- | ||||
| 6 | W11679940 | Bulb, Light (Replaces: 31956-1) | - |
|
Immediately | $ 10.17 | |||
| 7 | 52077-19 | Seal,upper Coil Cover To Liner | - |
|
- | ||||
| 8 | 52824-4 | Seal,upper Coil Cover | - |
|
- | ||||
| 9 | 29814-2 | Receptacle, Light | - |
|
- | ||||
| 10 | W11679940 | Light Bulb (25w,125v) (Replaces: 2386-1) | - |
|
Immediately | $ 10.17 | |||
| 11 | 56432-2 | Switch | - |
|
- | ||||
| 11 | 65512-1 | Spacer | - |
|
- | ||||
| 12 | 65654-1 | Shield, Light | - |
|
- | ||||
| 13 | 53687-2 | Support | - |
|
- | ||||
| 14 | 54424-2 | Support | - |
|
- | ||||
| 15 | 56488-4 | Motor | - |
|
- | ||||
| 16 | 52120-1 | Blade, Fan Frzr. | - |
|
- | ||||
| 17 | 64856-2 | Bracket, Fan Motor | - |
|
- | ||||
| 18 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 18 | 62689-1 | Fan Grid | - |
|
- | ||||
| 19 | 65224-9 | Cover, Coil | - |
|
- | ||||
| 20 | 26527-9 | Drain Tube | - |
|
- | ||||
| 21 | 54531-7 | Tube, Drain | - |
|
- | ||||
| 22 | 53727-1 | Retainer, Air Tunnel | - |
|
- | ||||
| 23 | 53727-1 | Retainer, Air Tunnel | - |
|
- | ||||
| 24 | 65651-9 | Shelf, Frz. No.1 | - |
|
- | ||||
| 25 | 65651-2 | Shelf, Frz. | - |
|
- | ||||
| 26 | 68405-13 | Shelf, Glass | - |
|
- | ||||
| 27 | 65561-117 | Trim, Shelf | - |
|
- | ||||
| 28 | 65653-1 | Im Duct | - |
|
- | ||||
| 29 | 65629-1 | Im Door | - |
|
- | ||||
| 30 | 68132-13 | Insert | - |
|
- | ||||
| 31 | 60313-1 | Cup, Shelf | - |
|
- | ||||
| 31 | 66146-1 | Latch | - |
|
- | ||||
| 31 | W11233072 | Screw (Replaces: 400016-1) | - |
|
Immediately | $ 12.62 | |||
| 32 | 06100011 | Freezer Drawer | - |
|
- | ||||
| 33 | 06100012 | Insert, Pan | - |
|
- | ||||
| 34 | 53821-1 | Nut | - |
|
- | ||||
| 35 | 59090-1 | Bushing | - |
|
- | ||||
| 36 | 57418-1 | Clip,food Liner Mount.(slides) | - |
|
- | ||||
| 36 | 65512-1 | Spacer | - |
|
- | ||||
| 36 | ES18809 | Switch (Replaces: 56432-1) | - |
|
$ 11.30 | ||||
| 37 | 52197-1 | Guard | - |
|
- | ||||
| 37 | 65136-2 | Wire Harness | - |
|
- | ||||
| 37 | 54653-31 | Lead | - |
|
- | ||||
| 38 | 66648-1 | Trim,frzr Shelves(front&back) | - |
|
- |
