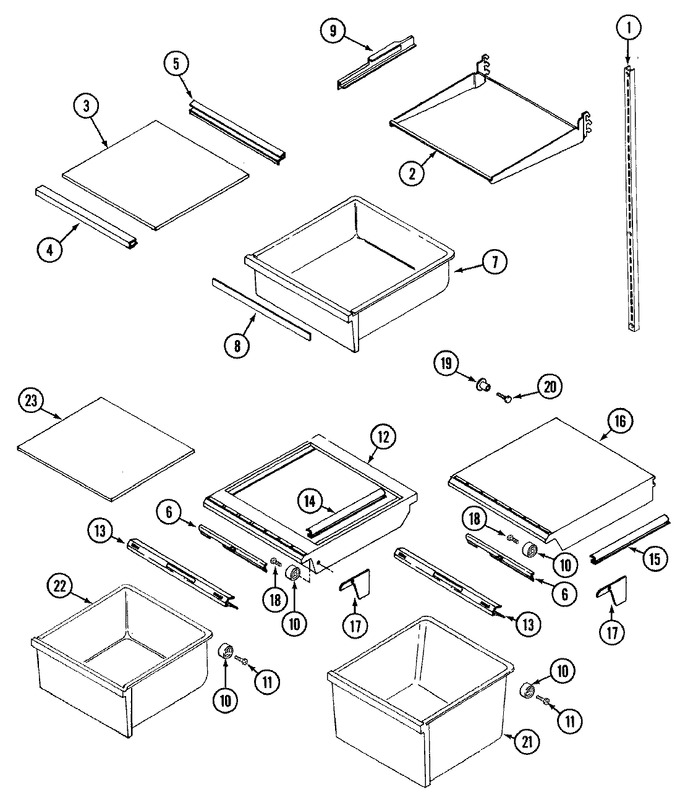

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support	10	Appelez-nous	-
1	400037-28		Screw	10	Appelez-nous	-
2	61001449		Frame, Shelf	10	Appelez-nous	-
2	65618-7		Frame, Deli Shelf	10	Appelez-nous	-
3	68405-9		Glass	10	Appelez-nous	-
3	68405-10		Glass, Deli	10	Appelez-nous	-
4	70107-5		Trim, Shelf Front	10	Appelez-nous	-
5	61001450		Trim, Shelf	10	Appelez-nous	-
6	67491-2		Slide, Control	10	Appelez-nous	-
7	61001451		Pan, Deli	10	Appelez-nous	-
8	68124-99		Insert, Crisper Handle	10	Appelez-nous	-
9	68805-2		Rail, Deli Pan	10	Appelez-nous	-
10	67423-2		Roller	10			$ 20.83
11	65275-6		Screw	10			$ 5.48
12	67891-4		Shelf, Crisper (upper)	10	Appelez-nous	-
13	70337-2		Trim, Crisper Shelf	10	Appelez-nous	-
14	69779-2		Seal, Crisper	10	Appelez-nous	-
15	69779-1		Seal	10	Appelez-nous	-
16	67892-6		Shelf, Crisper (lower)	10	Appelez-nous	-
17	67895-2		Support, Crisper Shelf (rt)	10	Appelez-nous	-
17	65275-28		Screw	10	Appelez-nous	-
17	67895-1		Support, Crisper Shelf (lt)	10	Appelez-nous	-
18	65275-34		Screw	10	Appelez-nous	-
19	67764-1		Support, Crisper Shelf	10			$ 8.05
20	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
21	69928-2		Pan, Crisper (lower)	10	Appelez-nous	-
22	69928-7		Pan, Crisper (upper)	10	Appelez-nous	-
23	67489-18		Glass, Crisper Shelf	10	Appelez-nous	-
