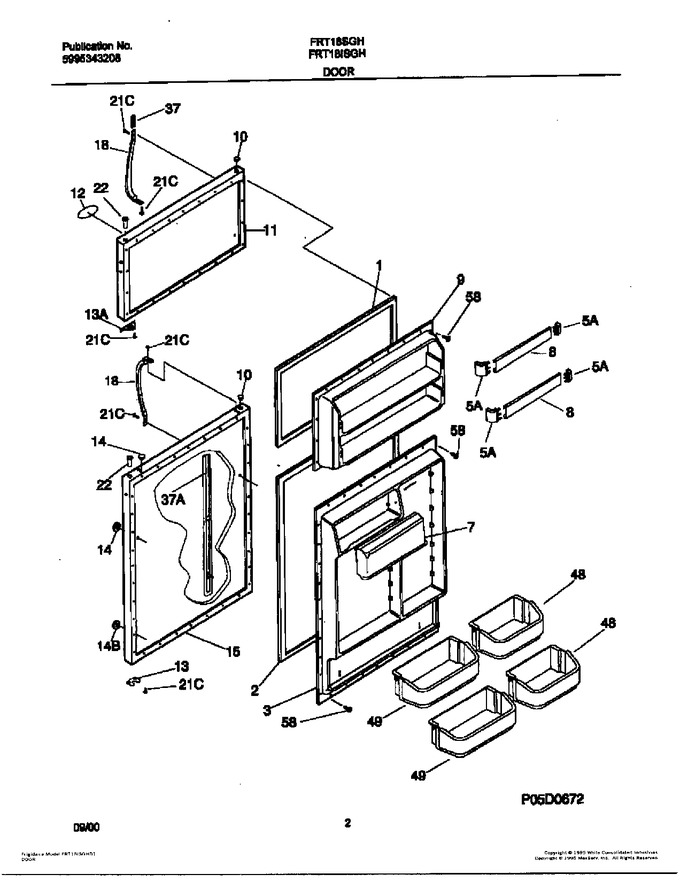

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608916		Gasket-frzr Door, White, Magnetic				$ 258.30
2	5303207345		Gasket-refr Door, White, Magnetic   (Replaces: 218730605)			Immediately	$ 188.19
3	218360701		Panel-inner Door, Refr		Appelez-nous	-
5	218758602		Support-door Rack,rh/lh			Immediately	$ 23.39
7	5303304569		Door-dairy,12.96`` Wide ,clear ,no Graphics		Appelez-nous	-
8	218763638		Rack-door,22.36`` X 2.04``		Appelez-nous	-
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917796		Panel-frzr Door, Almond, With Insulation		Appelez-nous	-
12	218425013		Nameplate Assy,almond		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	218800300		Door Stop,plated		Appelez-nous	-
14	218915702		Plug-button,almond		Appelez-nous	-
14	218074002		Plug-button, Almond, Refr Door Front, Lower		Appelez-nous	-
15	5303917798		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218668002		Handle-door, Almond		Appelez-nous	-
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	215867090		Trim-handle,29.84`` ,almond ,lower ,w/band & Locks		Appelez-nous	-
37	215870628		Trim-handle, 2.47``, Almond, W/gold Band		Appelez-nous	-
48	218592324		Bin-door,2 Liter ,with Trim		Appelez-nous	-
49	215441502		Bin-door,gallon ,with Trim   (Replaces: 218592323)				$ 176.87
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
*20560	215008614		Label-nameplate,almond		Appelez-nous	-
*20562	215518000		Magnet-nameplate		Appelez-nous	-
*20563	218364002		Frame-nameplate, Almond		Appelez-nous	-
*20565	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676003		Band-decorative, Gold				$ 47.11
37C	218906701		Lock-handle Trim,stick-on				$ 67.86
