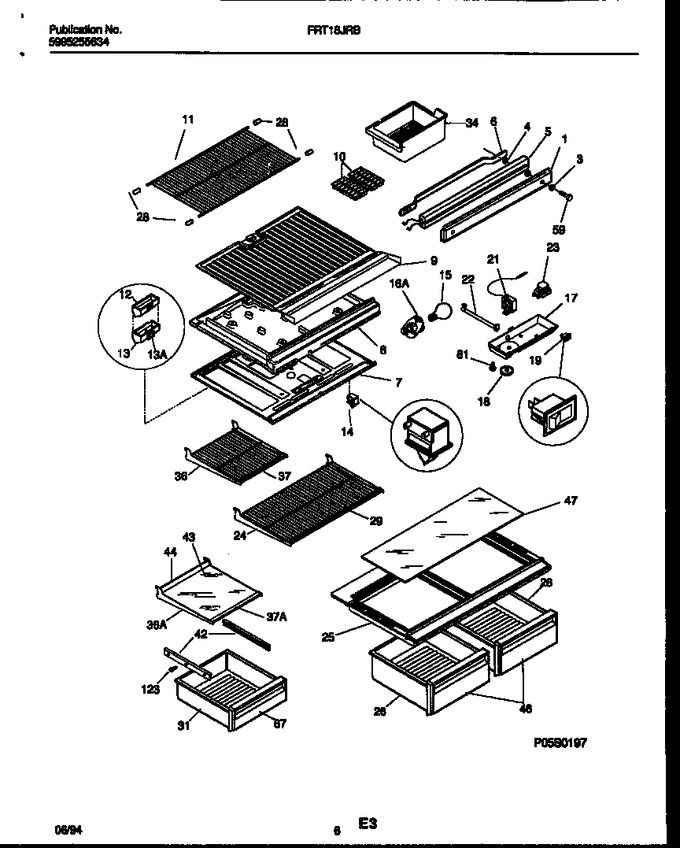

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206450		Mullion, Almond		Appelez-nous	-
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	215882100		Spacer-mullion Mtg, Stainless Steel		Appelez-nous	-
5	3206445		Heater-mullion		Appelez-nous	-
6	215170802		Strap-mullion, Mtg		Appelez-nous	-
7	3206454		Top Panel-refr		Appelez-nous	-
8	3206456		Divider, Styrofoam		Appelez-nous	-
9	3206455		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303288242		Shelf-freezer				$ 403.31
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303299980		Box-control		Appelez-nous	-
18	5303299979		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	5303295595		Shelf, Cantilever, Full-width, Wire		Appelez-nous	-
25	5303207340		Cover-crisper Pan, With Beam, Less Insert				$ 265.80
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		Cap-protector				$ 4.57
29	215217565		Trim-full Shelf, Front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
36	5303295954		Shelf, Cantilever, Half-width, Wire		Appelez-nous	-
37	215217564		Trim-half Shelf, Front		Appelez-nous	-
42	5303282330		Hanger-meat Pan, Lh				$ 65.42
43	215723506		Glass-shelf, Meat Kpr Shelf		Appelez-nous	-
44	215919809		Trim-meat Kpr Shelf, Rear				$ 35.28
46	215357601		Front-crisper Pan		Appelez-nous	-
47	5303281398		Insert-pan Cover, Glass				$ 114.29
59	5308012258		Screw				$ 2.25
67	215357801		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
*10144	5300170910		Clip-cantilevr Shlf				$ 2.60
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
36A	215919132		Frame-meat Kpr Shelf, Cantilever		Appelez-nous	-
37A	215919409		Trim-meat Kpr Shelf, Front		Appelez-nous	-
42A	5303282331		Hanger-meat Pan, Rh				$ 42.74
7A	5303001380		Screw		Appelez-nous	-
8A	3205266		Protector-edge (non-illustrated)				$ 80.09
8A	3018900		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
