SELECT A DIAGRAM

01 - Freezer Compartment


02 - Fresh Food Compartment


03 - Ice & Water Dispenser

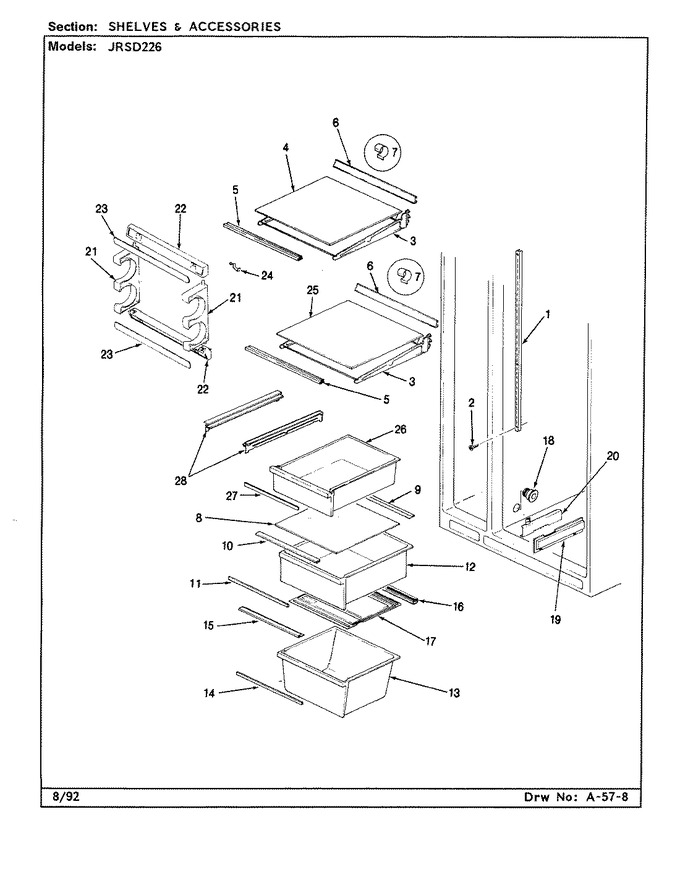

04 - Ice Maker & Bin


05 - Shelves & Accessories


06 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58381-4		Rail, Shelf Support	-	Appelez-nous	-
2	400037-28		Screw	-	Appelez-nous	-
3	67273-2		Frame, Shelf	-	Appelez-nous	-
4	68405-24		Glass, Shelf	-	Appelez-nous	-
4	67266-5		Shelf Seal	-	Appelez-nous	-
4	67265-5		Gasket, Shelf Front	-	Appelez-nous	-
5	68731-4		Trim, Front	-	Appelez-nous	-
6	68732-4		Trim, Rear	-	Appelez-nous	-
7	66333-1		Clip, Shelf Trim	-	Appelez-nous	-
8	65687-2		Shelf, Crisper	-	Appelez-nous	-
9	66092-2		Crisper Seal	-	Appelez-nous	-
10	66650-2		Seal, Crisper Pan (front)	-	Appelez-nous	-
11	68124-65		Handle, Crisper Pan	-	Appelez-nous	-
12	66637-34		Pan, Crisper	-	Appelez-nous	-
13	66637-35		Pan, Meat	-	Appelez-nous	-
14	68124-64		Insert, Pan	-	Appelez-nous	-
15	65648-2		Seal, Meat Pan (front)	-	Appelez-nous	-
16	65649-2		Seal, Meat Pan (rear)	-	Appelez-nous	-
17	65608-2		Cover, Meat Pan	-	Appelez-nous	-
18	53726-2		Tunnel, Air (meat)	-	Appelez-nous	-
19	56686-4		Clip	-	Appelez-nous	-
19	65737-2		Control Housing	-	Appelez-nous	-
20	65736-1		Slide Control, (meat)	-	Appelez-nous	-
21	56519-4		Rack, Wine	-	Appelez-nous	-
21	WP489478		Screw   (Replaces: 400017-1)	-			$ 6.98
22	65689-1		Support, Wine Rack	-	Appelez-nous	-
23	68821-7		Insert	-	Appelez-nous	-
23	68821-4		Insert	-	Appelez-nous	-
24	58057-1		Spring, Wine Rack	-	Appelez-nous	-
25	68405-25		Glass, Shelf	-	Appelez-nous	-
26	66637-33		Pan, Deli	-	Appelez-nous	-
26	66637-38		Pan, Fruit	-	Appelez-nous	-
27	68124-65		Handle, Crisper Pan	-	Appelez-nous	-
28	68696-1		Rail, Slide	-	Appelez-nous	-
