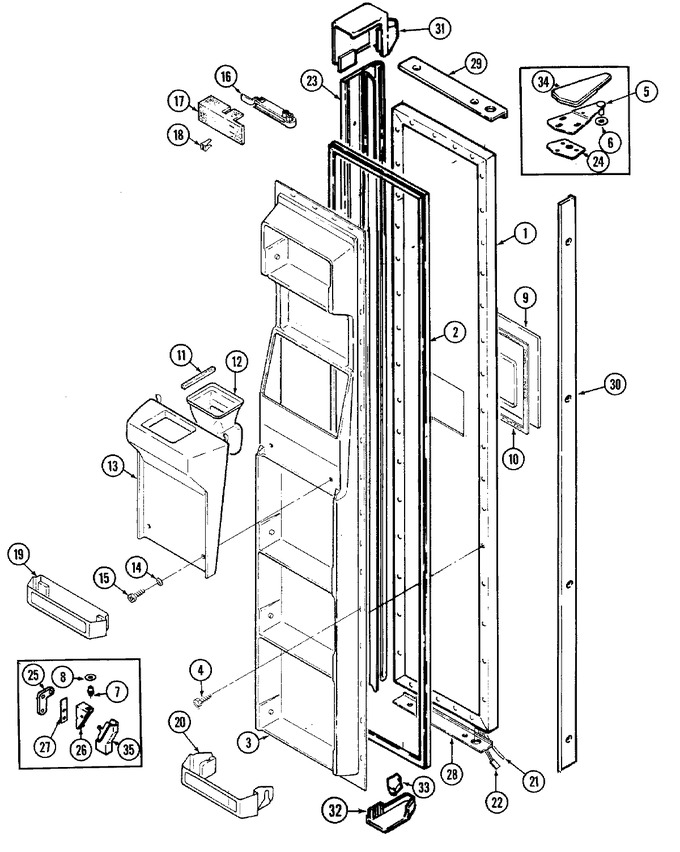

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 495034-900 | Plug Button, Door | 10 |
|
- | ||||
| 1 | 72346-1-WW | Panel, Frz. Door (wht) | 10 |
|
- | ||||
| 2 | 70024-1 | Gasket | 10 |
|
- | ||||
| 3 | 69253-1 | Liner, Frz. Door | 10 |
|
- | ||||
| 4 | 65275-5 | Screw | 10 |
|
- | ||||
| 5 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 5 | 53709-22 | Hinge, Upper | 10 |
|
- | ||||
| 6 | WP52185-1 | Washer (Replaces: 52185-1) | 10 |
|
Immediately | $ 9.47 | |||
| 7 | 70060-1 | Pin, Hinge | 10 |
|
- | ||||
| 8 | 67483-3 | Washer, Door Spacer | 10 |
|
Immediately | $ 45.86 | |||
| 9 | 69639-1 | Escutcheon W/tape (wht) | 10 |
|
- | ||||
| 10 | 95121-1 | Tape, Escutcheon | 10 |
|
- | ||||
| 11 | 52077-26 | Seal | 10 |
|
- | ||||
| 12 | 69220-1 | Chute, Ice | 10 |
|
- | ||||
| 13 | 69223-1 | Panel, Access | 10 |
|
- | ||||
| 13 | 68768-1 | Insulation | 10 |
|
- | ||||
| 13 | 68772-1 | Insulation | 10 |
|
- | ||||
| 14 | 68786-2 | Stud | 10 |
|
- | ||||
| 15 | W11772394 | Screw (Replaces: 400021-35) | 10 |
|
Immediately | $ 10.94 | |||
| 15 | 67144-1 | Grommet, Pick-off | 10 |
|
- | ||||
| 16 | 414004-1 | Screw | 10 |
|
- | ||||
| 16 | 69258-1 | Closer, Door | 10 |
|
- | ||||
| 17 | 70049-1 | Insulation Door | 10 |
|
- | ||||
| 17 | 52613-1 | Insulation, Closer | 10 |
|
- | ||||
| 18 | 69261-1 | Bracket, Closer | 10 |
|
- | ||||
| 19 | 69873-2 | Shelf, Pick-off | 10 |
|
- | ||||
| 20 | 69870-2 | Front, Pick-off Shelf | 10 |
|
- | ||||
| 21 | 69316-1 | Union, Reducing (3/8``- 5/16``) | 10 |
|
- | ||||
| 21 | WPW10426709 | Tubing (Replaces: 67187-16) | 10 |
|
$ 126.83 | ||||
| 22 | 69865-5 | Wire Harness, Door | 10 |
|
- | ||||
| 23 | 69636-1 | Trim, Handle | 10 |
|
- | ||||
| 23 | 65275-37 | Screw, Handle | 10 |
|
- | ||||
| 23 | 69914-1 | Handle Assy. (w/trim) | 10 |
|
- | ||||
| 24 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 25 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 25 | 65275-59 | Screw | 10 |
|
- | ||||
| 26 | 69516-3 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 26 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 27 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 28 | 69631-7 | Trim, Perimeter | 10 |
|
- | ||||
| 29 | 69631-6 | Trim, Perimeter | 10 |
|
- | ||||
| 30 | 69631-1 | Trim, Perimeter | 10 |
|
- | ||||
| 30 | 65275-71 | Screw | 10 |
|
- | ||||
| 31 | 69912-2 | Upper Endcap Assembly | 10 |
|
- | ||||
| 31 | 69638-1 | Insert, Nameplate | 10 |
|
- | ||||
| 32 | 69910-3 | End Cap Assy., Handle (lower) | 10 |
|
- | ||||
| 33 | 69815-2 | Filler, Lower Endcap | 10 |
|
- | ||||
| 34 | 65003-6 | Cover, Upper Hinge (wht) | 10 |
|
- | ||||
| 35 | 68978-4 | Cover, Lower Hinge (wht) | 10 |
|
- | ||||
| 35 | 65275-56 | Screw | 10 |
|
- |
