SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door

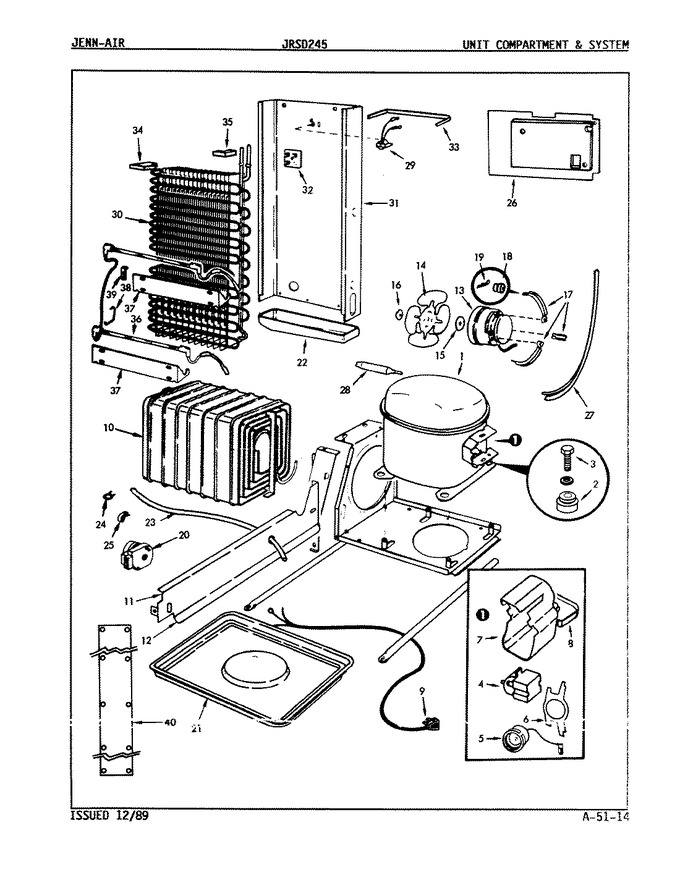

05 - Unit Compartment & System


06 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA1018		Compressor		Appelez-nous	-
2	17245-4		Grommet, Compressor		Appelez-nous	-
3	65275-9		Screw, Compressor Mounting		Appelez-nous	-
4	400062-1		Screw		Appelez-nous	-
4	66858-1		Relay, Start		Appelez-nous	-
5	63294-19		Overload		Appelez-nous	-
6	65887-1		Clip, Overload		Appelez-nous	-
7	66589-2		Cover, Terminal		Appelez-nous	-
8	65886-1		Clip, Terminal Cover		Appelez-nous	-
9	52890-2		Cord, Power		Appelez-nous	-
10	RA43644-1		Condenser		Appelez-nous	-
10	60408-2		U-nut, Condenser		Appelez-nous	-
11	29838-4		Baffle		Appelez-nous	-
12	65493-1		Baffle, Air Divider		Appelez-nous	-
12	WP488729		Screw   (Replaces: 9986-45)			Immediately	$ 7.01
13	833697		Motor, Condenser Fan   (Replaces: 67560-3)			Immediately	$ 79.34
13	65275-33		Screw		Appelez-nous	-
13	29675-2		Cord		Appelez-nous	-
14	WP12587601		Blade, Condenser Fan   (Replaces: 60683-2)				$ 114.00
15	19913-2		Washer, Fan Blade		Appelez-nous	-
16	WP486692		Clip, Fan Blade   (Replaces: 19914)				$ 7.04
17	56936-1		Bracket, Fan Motor		Appelez-nous	-
18	56933-1		Grommet, Bracket		Appelez-nous	-
19	57051-1		Clip, Motor Bracket		Appelez-nous	-
20	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
20	405007-1		Screw		Appelez-nous	-
20	29282-2		Bracket, Mounting Timer		Appelez-nous	-
20	WP4391974		Timer, Defrost   (Replaces: 66556-2)			Immediately	$ 171.43
21	45004-20		Cushion Padding, Drain Pan		Appelez-nous	-
21	29839-4		Pan, Drain		Appelez-nous	-
22	53523-2		Trough, Drain		Appelez-nous	-
23	26911-25		Hose, Drain		Appelez-nous	-
24	WP596669		Clamp, Drain Hose   (Replaces: 9602-3)			Immediately	$ 7.56
25	53516-5		Clamp, Drain Hose		Appelez-nous	-
26	66339-1		Cover		Appelez-nous	-
27	RA95090-2		Heat Exchanger		Appelez-nous	-
27	26088-23		Sleeve		Appelez-nous	-
28	WPW10143759		Drier   (Replaces: 13900)			Immediately	$ 27.70
29	52085-13		Thermostat, Defrost		Appelez-nous	-
30	RA43643-10		Evaporator		Appelez-nous	-
31	65033-2		Housing		Appelez-nous	-
32	55878-1		Board, Terminal		Appelez-nous	-
33	52077-14		Seal		Appelez-nous	-
34	65063-1		Seal, Styrofoam-(left)		Appelez-nous	-
35	65064-1		Seal, Styrofoam-(right)		Appelez-nous	-
36	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
36	WP61001874		Heater, Defrost   (Replaces: 52764-15)			Immediately	$ 124.88
37	29915-13		Shield, Defrost Heater		Appelez-nous	-
38	52067-1		Clip, Defrost Heater		Appelez-nous	-
39	52561-1		Bracket, Heater Shield		Appelez-nous	-
40	59940-3		Wire Harness, Compressor		Appelez-nous	-
40	66381-1		Cover		Appelez-nous	-
40	68027-1		Wire Harness, Main		Appelez-nous	-
40	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
40	66939-1		Wire Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
