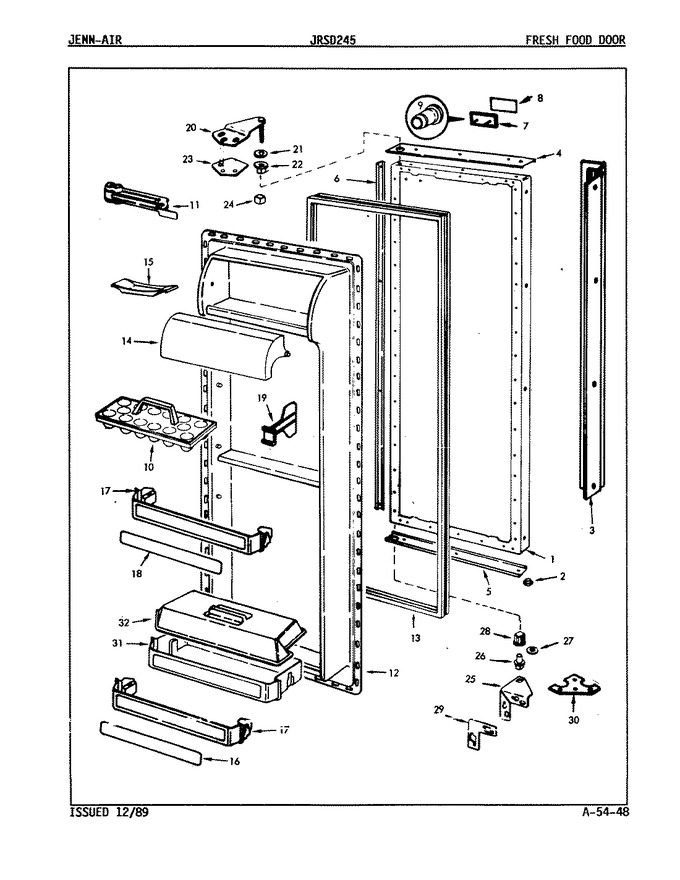

01 - Fresh Food Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA95060-1 | Insulation Kit |
|
- | |||||
| 2 | 495034-900 | Plug Button, Door |
|
- | |||||
| 3 | 66799-1 | Achor, Screw |
|
- | |||||
| 3 | 65275-4 | Screw |
|
- | |||||
| 3 | 68206-2 | Handle, F.f. Door |
|
- | |||||
| 4 | 68203-1 | Trim, Perimeter Trim (top) |
|
- | |||||
| 5 | 68204-1 | Trim, Perimeter Trim (bottom) |
|
- | |||||
| 6 | 65275-15 | Screw |
|
- | |||||
| 6 | 68205-2 | Trim, Perimeter Trim (side) |
|
- | |||||
| 6 | 66799-1 | Achor, Screw |
|
- | |||||
| 7 | 68060-1 | Bezel |
|
- | |||||
| 8 | 68061-4 | Insert, Nameplate |
|
- | |||||
| 9 | 68381-1 | Retainer, Nameplate Bezel |
|
- | |||||
| 10 | 60066-13 | Tray, Egg |
|
- | |||||
| 11 | 52613-1 | Insulation, Closer |
|
- | |||||
| 11 | 52614-1 | Bracket, Closer |
|
- | |||||
| 11 | 54485-1 | Closer, Door |
|
- | |||||
| 11 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 12 | 65641-6 | Liner, F.f. Door |
|
- | |||||
| 12 | 9986-12 | Screw,door Liner |
|
- | |||||
| 13 | 53712-2 | Gasket |
|
- | |||||
| 14 | 66184-361 | Door, Dairy |
|
- | |||||
| 15 | 29936-2 | Tray, Butter |
|
- | |||||
| 16 | 68121-43 | Insert, Shelf Door |
|
- | |||||
| 17 | 65781-6 | Shelf Front |
|
- | |||||
| 18 | 68121-43 | Insert, Shelf Door |
|
- | |||||
| 19 | 66645-5 | Shelf, Pick-off |
|
- | |||||
| 20 | 53709-22 | Hinge, Upper |
|
- | |||||
| 20 | 66875-1 | Cover, Upper Hinge (chrome) |
|
- | |||||
| 20 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 21 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 22 | 66036-2 | Bushing, Upper Hinge |
|
- | |||||
| 23 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 24 | 55990-1 | Seal Sleeve |
|
- | |||||
| 25 | 403062-801 | Screw |
|
- | |||||
| 25 | 60630-12 | Hinge, Lower |
|
- | |||||
| 26 | 53672-1 | Pin, Lower Hinge |
|
- | |||||
| 27 | 54233-1 | Washer |
|
$ 7.71 | |||||
| 28 | 66034-1 | Bushing, Lower Hinge |
|
$ 19.76 | |||||
| 29 | 60626-1 | Shim, Lower Hinge |
|
- | |||||
| 30 | 65964-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 31 | 65782-6 | Shelf, Pick-off |
|
- | |||||
| 32 | 66637-40 | Cover, Pick-off |
|
- |
