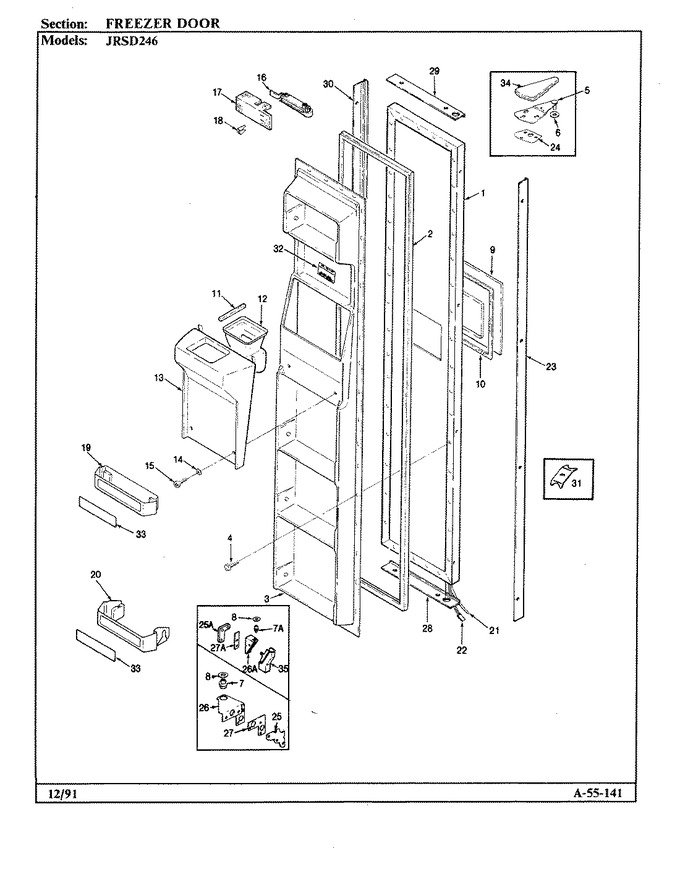

01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Ice & Water Dispenser
06 - Ice Maker & Bin
07 - Shelves & Accessories
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA95060-1 | Insulation Kit | - |
|
- | ||||
| 1 | 68457-1-AM | Panel, Outer Door | - |
|
- | ||||
| 1 | 68457-1-WW | Panel, Outer Door | - |
|
- | ||||
| 2 | 66929-1 | Gasket, Freezer Door | - |
|
- | ||||
| 3 | 68554-2 | Liner | - |
|
- | ||||
| 4 | 65275-5 | Screw | - |
|
- | ||||
| 5 | WP3-24838-048 | Screw (Replaces: 9986-87) | - |
|
$ 7.00 | ||||
| 5 | 53709-16 | Upper Hinge,(chrome) | - |
|
- | ||||
| 6 | WP52185-1 | Washer (Replaces: 52185-1) | - |
|
Immediately | $ 9.47 | |||
| 7 | 68789-1 | Hinge Pin | - |
|
- | ||||
| 8 | 67483-3 | Washer, Door Spacer | - |
|
Immediately | $ 45.86 | |||
| 9 | 68594-11 | Escutcheon (blk) | - |
|
- | ||||
| 10 | 95121-1 | Tape, Escutcheon | - |
|
- | ||||
| 11 | 52077-26 | Seal | - |
|
- | ||||
| 12 | 68569-1 | Chute, Ice | - |
|
- | ||||
| 13 | 68768-2 | Insulation | - |
|
- | ||||
| 13 | 68634-2 | Access Panel | - |
|
- | ||||
| 13 | 68770-1 | Insulation | - |
|
- | ||||
| 14 | 68786-2 | Stud | - |
|
- | ||||
| 15 | 66170-4 | Anchor | - |
|
- | ||||
| 15 | W11772394 | Screw (Replaces: 400021-103) | - |
|
Immediately | $ 10.94 | |||
| 16 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 16 | 54485-1 | Closer, Door | - |
|
- | ||||
| 17 | 52613-1 | Insulation, Closer | - |
|
- | ||||
| 18 | 52614-1 | Bracket, Closer | - |
|
- | ||||
| 19 | 68727-4 | Pick-off Shelf | - |
|
- | ||||
| 20 | 65701-10 | Front, Pick-off | - |
|
- | ||||
| 21 | WPW10426709 | Tubing Plastic-door Panel (Replaces: 67187-1) | - |
|
$ 126.83 | ||||
| 22 | 68908-1 | Wire Harness | - |
|
- | ||||
| 23 | 65275-37 | Screw, Handle | - |
|
- | ||||
| 23 | 68658-4 | Handle | - |
|
- | ||||
| 24 | 65031-1 | Shim, Upper Hinge | - |
|
- | ||||
| 25 | 65964-2 | Tapping Plate | - |
|
- | ||||
| 26 | 403100-1 | Screw | - |
|
- | ||||
| 26 | 67714-4 | Hinge | - |
|
- | ||||
| 27 | 60626-1 | Shim, Lower Hinge | - |
|
- | ||||
| 28 | 68218-2 | Perimeter Trim, Lower | - |
|
- | ||||
| 29 | 68217-2 | Perimeter Trim, Top | - |
|
- | ||||
| 30 | 68205-3 | Trim, Perimeter | - |
|
- | ||||
| 30 | 65275-38 | Screw | - |
|
- | ||||
| 31 | 66799-1 | Achor, Screw | - |
|
- | ||||
| 31 | 60319-4 | Screw, Anchor | - |
|
- | ||||
| 32 | 68784-6 | Insert, Food Storage | - |
|
- | ||||
| 33 | 68121-58 | Insert | - |
|
- | ||||
| 34 | 65003-3 | Cover, Upper Hinge (alm) | - |
|
- | ||||
| 34 | 65003-6 | Cover, Upper Hinge (wht) | - |
|
- |
