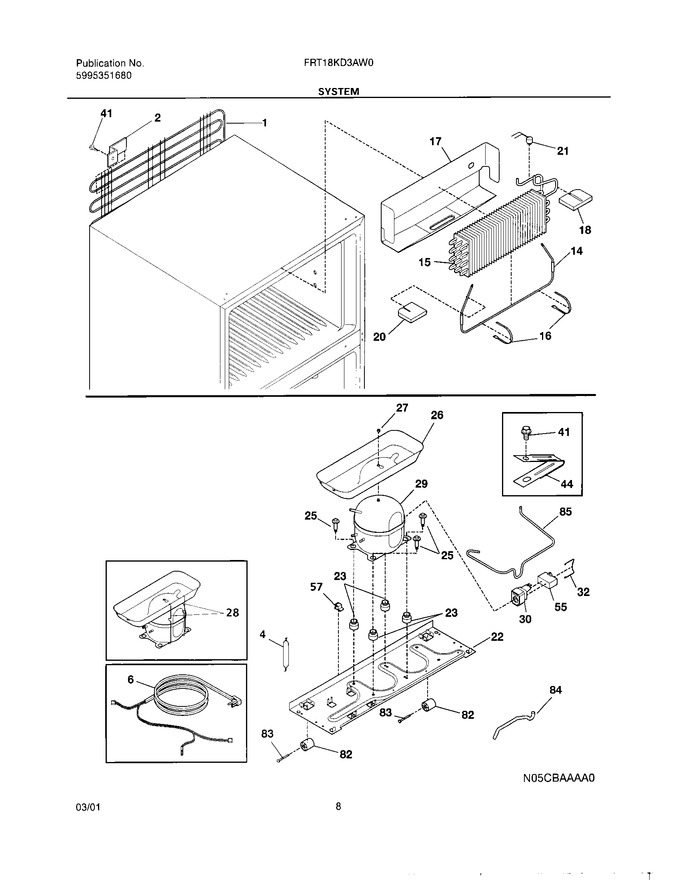

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 240406401 | Condenser,static |
|
- | |||||
| 2 | 5308000296 | Bracket,condenser Mtg ,(4) |
|
$ 30.20 | |||||
| 4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 31.67 | ||||
| 6 | 240375401 | Wiring Harness,machine Compt ,w/ Service Cord |
|
$ 143.79 | |||||
| 14 | 5303918208 | Defrost Heater Kit |
|
Immediately | $ 109.15 | ||||
| 15 | 5303918274 | Evaporator Kit (Replaces: 5303918250) |
|
Immediately | $ 423.67 | ||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 17 | 241801301 | Trough-drain (Replaces: 240434002) |
|
$ 64.46 | |||||
| 18 | 240362301 | Insulation Block,rh |
|
- | |||||
| 20 | 240362401 | Insulation Block,lh |
|
- | |||||
| 21 | 5303918202 | Thermostat-defrost,kit |
|
Immediately | $ 20.21 | ||||
| 22 | 240330001 | Plate-compr Mtg |
|
$ 94.87 | |||||
| 23 | 216498900 | Grommet,compressor |
|
$ 13.01 | |||||
| 25 | 240420301 | Screw-shoulder |
|
- | |||||
| 26 | 240346901 | Pan-defrost Drain |
|
$ 335.78 | |||||
| 27 | 5303001348 | Nut,lock `1/4-20 ,drain Pan Mtg |
|
$ 2.73 | |||||
| 28 | 5303916001 | Pan Retainer Kit, Service |
|
$ 78.75 | |||||
| 29 | 5304511983 | Compressor,r134a ,w/ Electricals (Replaces: 5303918233) |
|
$ 671.86 | |||||
| 30 | 218721113 | Starter-ptc |
|
- | |||||
| 32 | 218740800 | Wire-bale |
|
$ 65.21 | |||||
| 41 | 218897001 | Screw,hex Washer Head ,8-32 X 1/4 |
|
$ 4.40 | |||||
| 44 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909901) |
|
Immediately | $ 35.38 | ||||
| 57 | 240403601 | Clip-wiring Harness |
|
- | |||||
| 82 | 5304418225 | Roller-rear,comp Base ,(2) |
|
$ 51.57 | |||||
| 83 | 215164200 | Pin-roller,(2) |
|
- | |||||
| 84 | 240367101 | Tube-drain,lower |
|
$ 123.22 | |||||
| 85 | 240346202 | Tube-connector,suction |
|
- | |||||
| NI | 5303918234 | Hot Tube Repair Kit,service |
|
$ 585.53 | |||||
| NI | 5303208866 | Spacer-cond Tube,black |
|
$ 1.94 | |||||
| NI | 5308000039 | Screw |
|
- | |||||
| NI | 5308009617 | Washer,ext Tooth Lock ,no.10 ,grounding |
|
- | |||||
| NI | 240385401 | Wiring Harness,freezer Section |
|
$ 73.97 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 | ||||
| NI | 218252201 | Screw,8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| NI | 5303918263 | Heat Exchanger Kit,suction Line (Replaces: 5303918207) |
|
$ 461.16 |
