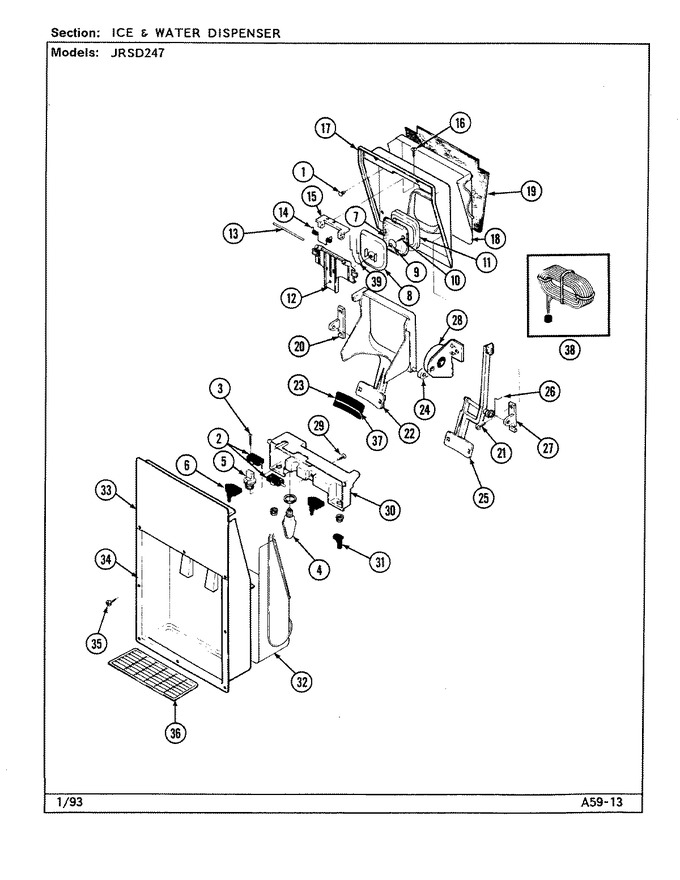

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 28272-6 | Bumper, Door | 10 |
|
- | ||||
| 2 | 55440-2 | Switch, Ice & Water | 10 |
|
$ 11.94 | ||||
| 3 | 405071-1 | Screw | 10 |
|
- | ||||
| 4 | W10857122 | Bulb, Light (Replaces: 63179-1) | 10 |
|
$ 12.45 | ||||
| 5 | 67293-1 | Socket, Light (w/nut) | 10 |
|
- | ||||
| 6 | 27116-5 | Nut, Wire | 10 |
|
- | ||||
| 6 | 68491-1 | Wire Harness, Switch | 10 |
|
- | ||||
| 6 | 69832-2 | Switch, Light (w/nut) | 10 |
|
- | ||||
| 7 | 68557-1 | Insulation, Ice Door | 10 |
|
- | ||||
| 8 | 68957-2 | Door, Ice | 10 |
|
$ 6.21 | ||||
| 9 | 68566-1 | Retainer | 10 |
|
- | ||||
| 10 | 405116-103 | Screw | 10 |
|
- | ||||
| 11 | 69867-1 | Seal, Ice Door | 10 |
|
$ 5.70 | ||||
| 12 | 68563-2 | Strike, Ice Door | 10 |
|
- | ||||
| 13 | 68564-1 | Shaft | 10 |
|
- | ||||
| 14 | 68765-1 | Spring | 10 |
|
- | ||||
| 15 | 68958-1 | Bracket, Pivot | 10 |
|
- | ||||
| 16 | 405024-103 | Screw | 10 |
|
- | ||||
| 17 | WP1163283 | Screw (Replaces: 405025-103) | 10 |
|
$ 6.47 | ||||
| 17 | 68567-3 | Back, Fountain (alm) | 10 |
|
- | ||||
| 18 | 68937-1 | Heater, Fountain Back | 10 |
|
- | ||||
| 19 | 68714-1 | Insulation, Foil | 10 |
|
- | ||||
| 20 | 68627-1 | Pivot, Actuator (lt) | 10 |
|
- | ||||
| 21 | 405024-103 | Screw | 10 |
|
- | ||||
| 22 | 69112-3 | Paddle, Ice (alm) | 10 |
|
$ 43.53 | ||||
| 23 | 69174-3 | Pad, Paddle (alm) | 10 |
|
- | ||||
| 24 | 68764-1 | Pivot, Actuator (center) | 10 |
|
- | ||||
| 26 | 68767-1 | Spring, Paddle Return | 10 |
|
- | ||||
| 27 | 68628-1 | Pivot, Actuator (rt)---na | 10 |
|
- | ||||
| 28 | WP1163283 | Screw (Replaces: 405025-103) | 10 |
|
$ 6.47 | ||||
| 28 | 69275-1 | Motor, Interia----na | 10 |
|
- | ||||
| 29 | WP1163283 | Screw (Replaces: 405025-103) | 10 |
|
$ 6.47 | ||||
| 30 | 68626-1 | Bracket | 10 |
|
- | ||||
| 31 | 68568-2 | Plunger | 10 |
|
- | ||||
| 32 | 68936-1 | Heater, Fountain | 10 |
|
- | ||||
| 33 | 68955-1 | Front, Fountain | 10 |
|
- | ||||
| 34 | 68954-3 | Fountain (alm) | 10 |
|
- | ||||
| 35 | WP1163283 | Screw (Replaces: 405025-103) | 10 |
|
$ 6.47 | ||||
| 36 | 68631-1 | Grill | 10 |
|
- | ||||
| 37 | 68763-1 | Trim, Paddle Pad | 10 |
|
$ 5.04 | ||||
| 38 | 67616-1 | Coil, Water | 10 |
|
- | ||||
| 39 | 69868-1 | Spring, Ice Door | 10 |
|
- |
