SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Ice & Water Dispenser


08 - Ice Crusher & Bin


09 - Ice Maker


10 - Shelves & Accessories


11 - Unit Compartment & System


12 - Wiring Information

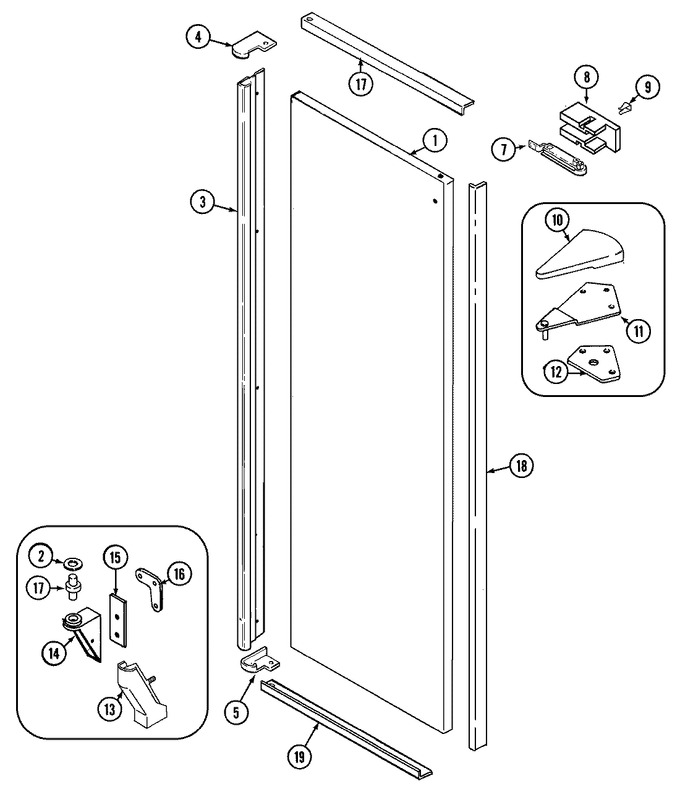

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	495034-900		Plug Button, Door	10	Appelez-nous	-
1	72448-703-WW		Panel, F.f. Door (wht)	10	Appelez-nous	-
2	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
3	65275-37		Screw, Handle	10	Appelez-nous	-
3	70305-24		Handle (wht)	10	Appelez-nous	-
4	65275-83		Screw, Freezer Knob	10	Appelez-nous	-
4	70306-2		End Cap, Handle	10	Appelez-nous	-
5	70306-1		End Cap, Handle	10	Appelez-nous	-
6	69845-1		Pin, Lower Hinge	10			$ 44.55
7	69258-1		Closer, Door	10	Appelez-nous	-
7	414004-35		Screw	10	Appelez-nous	-
8	70049-1		Insulation Door	10	Appelez-nous	-
8	52613-1		Insulation, Closer	10	Appelez-nous	-
9	69261-1		Bracket, Closer	10	Appelez-nous	-
10	70121-4		Cover, Upper Hinge (wht)	10	Appelez-nous	-
11	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
11	53709-26		Hinge Upper	10	Appelez-nous	-
12	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
13	61001611		Cover, Lower Hinge (wht)	10	Appelez-nous	-
14	61001587		Hinge, Lower	10	Appelez-nous	-
14	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
15	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
16	65275-59		Screw	10	Appelez-nous	-
16	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
17	61001249		Trim, Perimeter (top)	10	Appelez-nous	-
18	61001250		Trim, Perimeter (side)	10	Appelez-nous	-
19	65275-71		Screw	10	Appelez-nous	-
19	61001251		Trim, Perimeter (bottom)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
