01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Ice & Water Dispenser


08 - Ice Crusher & Bin


09 - Ice Maker


10 - Shelves & Accessories


11 - Unit Compartment & System


12 - Wiring Information

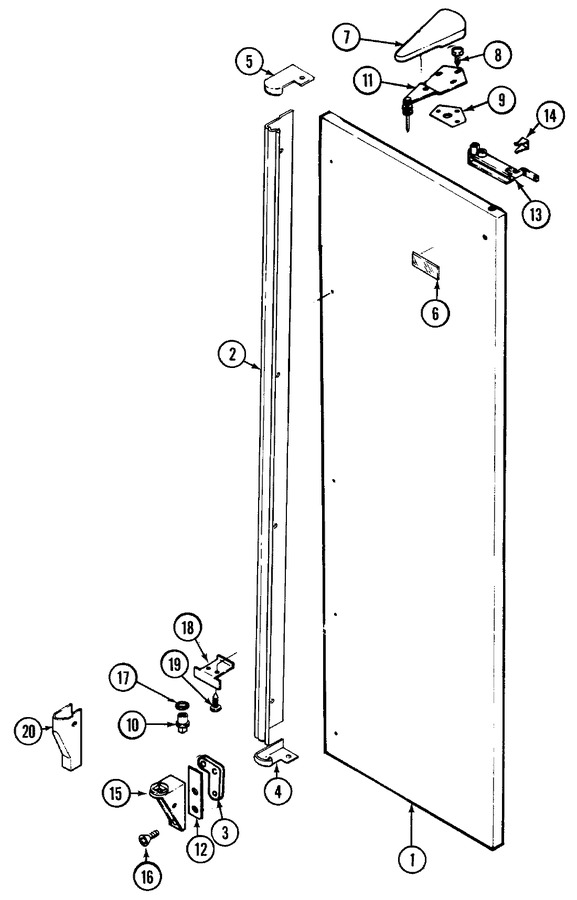

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	495034-900		Plug Button, Door	10	Appelez-nous	-
1	72448-704-AM		Panel, F.f. Door (alm)	10	Appelez-nous	-
2	65275-37		Screw, Handle	10	Appelez-nous	-
2	70305-18		Handle (alm)	10	Appelez-nous	-
3	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
3	65275-59		Screw	10	Appelez-nous	-
4	65275-85		Screw	10	Appelez-nous	-
4	70306-1		End Cap, Handle	10	Appelez-nous	-
5	70306-2		End Cap, Handle	10	Appelez-nous	-
6	68061-10		Nameplate	10	Appelez-nous	-
7	70121-3		Cover, Upper Hinge (alm)	10	Appelez-nous	-
8	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
9	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
10	69845-1		Pin, Lower Hinge	10			$ 44.55
11	53709-22		Hinge, Upper	10	Appelez-nous	-
12	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
13	414004-1		Screw	10	Appelez-nous	-
13	69258-1		Closer, Door	10	Appelez-nous	-
14	69261-1		Bracket, Closer	10	Appelez-nous	-
15	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
16	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
17	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
18	70224-1		Stop, Door	10	Appelez-nous	-
19	65275-48		Screw	10	Appelez-nous	-
20	68978-3		Cover, Lower Hinge (alm)	10	Appelez-nous	-
