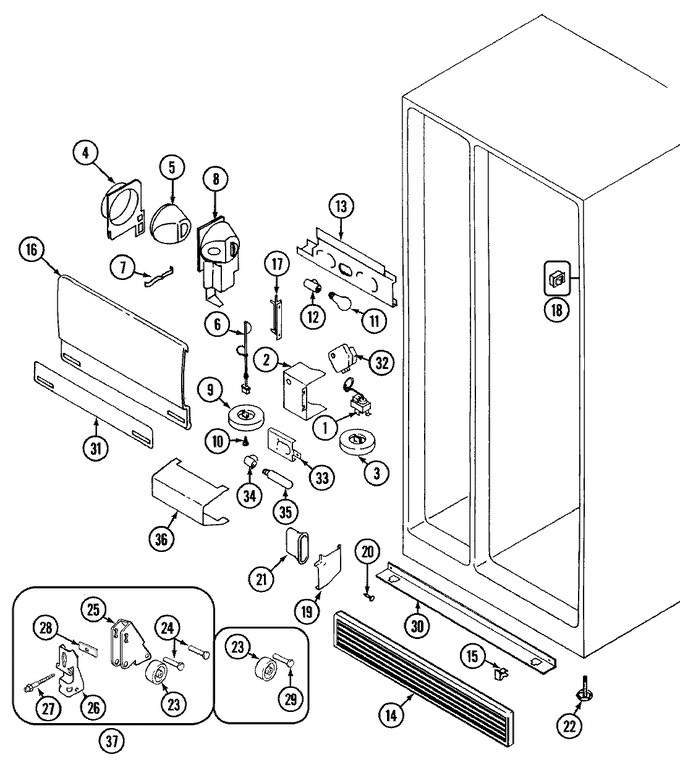

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP61001673 | Control, Temperature (Replaces: 69694-3) | 10 |
|
Immediately | $ 144.29 | |||
| 1 | WP489399 | Screw (Replaces: 401024-1) | 10 |
|
$ 6.26 | ||||
| 2 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 2 | 70178-1 | Housing, Temperature Control | 10 |
|
- | ||||
| 3 | 67145-3 | Knob, Temperature Control | 10 |
|
- | ||||
| 4 | 61001230 | Orifice, Frz. Control (inlet) | 10 |
|
- | ||||
| 5 | 58767-1 | Insulation, Housing | 10 |
|
- | ||||
| 6 | 67355-1 | Damper, Frz. Control | 10 |
|
- | ||||
| 7 | 52648-1 | Spring, Baffle | 10 |
|
- | ||||
| 8 | 67354-1 | Housing, Frz. Control | 10 |
|
- | ||||
| 8 | 415017-1 | Screw | 10 |
|
- | ||||
| 9 | 67145-4 | Knob, Freezer Control | 10 |
|
- | ||||
| 10 | 400001-1 | Screw | 10 |
|
- | ||||
| 11 | W11679940 | Bulb, Light (Replaces: 31956-1) | 10 |
|
Immediately | $ 10.17 | |||
| 12 | 29813-1 | Socket, Light | 10 |
|
- | ||||
| 13 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 13 | 67751-2 | Housing, Light Socket & Wires | 10 |
|
- | ||||
| 14 | 68981-6 | Kickplate (alm) | 10 |
|
- | ||||
| 15 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 15 | 60100-1 | Clip, Kickplate | 10 |
|
$ 5.85 | ||||
| 16 | 67113-5 | Shield, Light | 10 |
|
- | ||||
| 17 | 67125-1 | Support, Light Shield | 10 |
|
- | ||||
| 18 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 19 | 69982-1 | Cover, Air Return | 10 |
|
- | ||||
| 20 | 28013-2 | Rivet, Air Tunnel | 10 |
|
- | ||||
| 21 | 67684-1 | Tunnel, Air Return | 10 |
|
- | ||||
| 22 | W11117769 | Leg, Leveling (Replaces: 68664-1) | 10 |
|
Immediately | $ 16.61 | |||
| 23 | 69812-1 | Wheel | 10 |
|
- | ||||
| 24 | 64965-1 | Pin, Wheel | 10 |
|
- | ||||
| 25 | 67806-2 | Bracket, Wheel | 10 |
|
- | ||||
| 25 | WP33002917 | Screw (Replaces: 65275-1) | 10 |
|
Immediately | $ 6.90 | |||
| 26 | 70230-1 | Faceplate, Bracket | 10 |
|
- | ||||
| 27 | 61001126 | Screw, Wheel Adjustment | 10 |
|
- | ||||
| 28 | 59101-1 | Tapping Plate, Wheel | 10 |
|
- | ||||
| 29 | 64965-3 | Pin, Wheel (rear) | 10 |
|
- | ||||
| 30 | 3400518 | Screw (Replaces: 65275-42) | 10 |
|
$ 11.68 | ||||
| 30 | 61001032 | Rail, Horizontal Support | 10 |
|
- | ||||
| 31 | 67476-7 | Insert, Light Shield | 10 |
|
- | ||||
| 32 | WP68233-3 | Timer, Defrost (Replaces: 68233-3) | 10 |
|
Immediately | $ 139.32 | |||
| 32 | 405007-1 | Screw | 10 |
|
- | ||||
| 33 | 67243-1 | Base, Light (meat) | 10 |
|
- | ||||
| 34 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 35 | 20174-6 | Bulb, Light | 10 |
|
- | ||||
| 36 | 67242-1 | Shield, Light | 10 |
|
- | ||||
| 37 | 61001108 | Wheel Assy. | 10 |
|
- |
