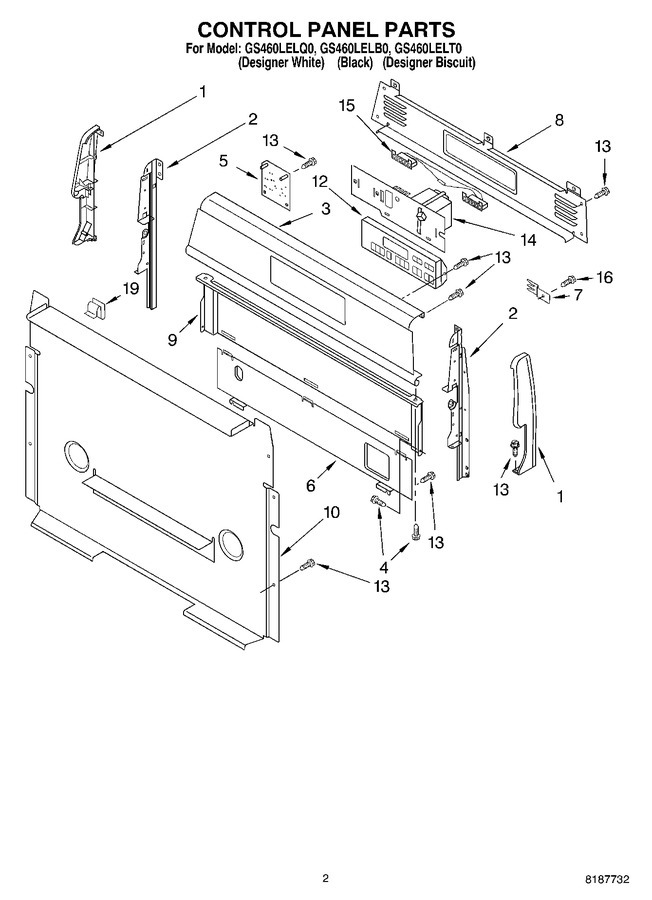

02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186189 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | 3186190 | Endcap (left Hand White) |
|
- | |||||
| 1 | 8272507 | Endcap (left Hand-biscuit) |
|
- | |||||
| 1 | 3186188 | Endcap, Left Hand (black) |
|
- | |||||
| 1 | 3186191 | Endcap (right Hand White) |
|
- | |||||
| 1 | 8272508 | Endcap (right Hand-biscuit) |
|
- | |||||
| 2 | 8523408 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 8523409 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8524101 | Panel, Control (biscuit) |
|
- | |||||
| 3 | 8524102 | Panel, Control (black) |
|
- | |||||
| 3 | 8524106 | Panel, Control (white) |
|
- | |||||
| 4 | W10276642 | Screw (Replaces: 4449746) |
|
$ 5.49 | |||||
| 5 | WPW10331686 | Module, Spark (Replaces: 8273977) |
|
Immediately | $ 354.47 | ||||
| 6 | 8053505 | Shield, Lower Heat |
|
$ 142.19 | |||||
| 7 | 8523412 | Bracket, Support |
|
$ 143.91 | |||||
| 8 | 8272474 | Cover, Upper |
|
- | |||||
| 9 | 8053910 | Shield, Heat |
|
- | |||||
| 10 | 8273132 | Cover, Lower |
|
- | |||||
| 12 | 8523302 | Control, Range (black) |
|
- | |||||
| 12 | 8523301 | Control, Range (biscuit) |
|
- | |||||
| 12 | 8523300 | Control, Range (white) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 14 | 9755076 | Power Supply, Pca |
|
- | |||||
| 15 | 8523000 | Jumper W/fuse |
|
- | |||||
| 16 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 19 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 10.85 |
