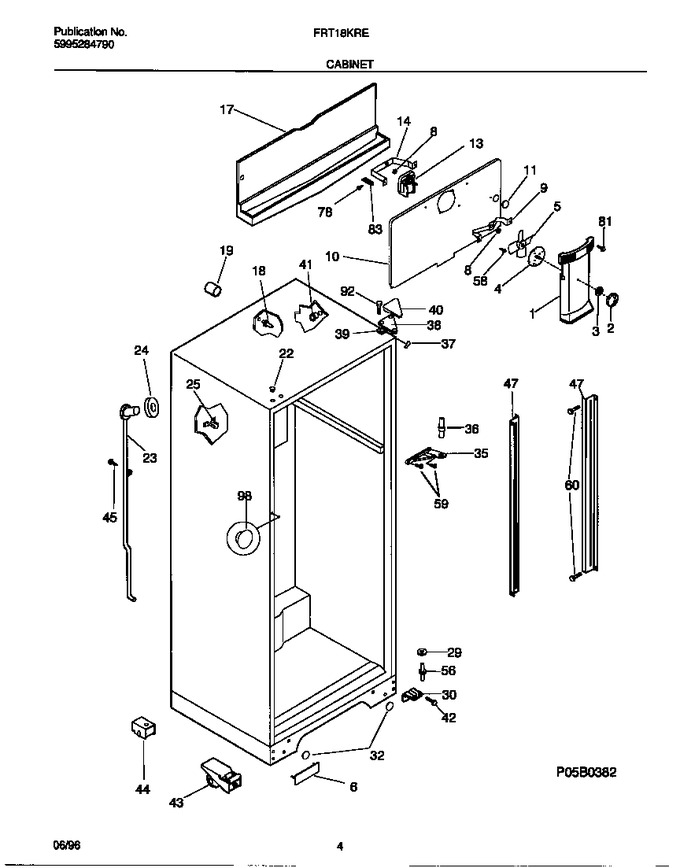

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303307350		Cover, Fan		Appelez-nous	-
2	5303307351		Knob, Damper Control				$ 32.71
3	5303001028		Nut,push-on		Appelez-nous	-
4	218430000		Damper-fan Cover, Black				$ 50.99
5	5308000010		Fan Blade, Black   (Replaces: 218649000)			Immediately	$ 49.03
6	218448302		Cover, Almond, Lwr Hinge Hole		Appelez-nous	-
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
13	5300158289		Motor-evap Fan   (Replaces: 215360800)			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	3206444		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
22	215774911		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	5303269702		Tube-drain, W/seal Ring				$ 104.63
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	215774100		Spout-drain Tube, W/mounting Pins		Appelez-nous	-
29	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
32	215217703		Plug-button, Almond, Cabinet Base		Appelez-nous	-
35	218220102		Bracket-ctr Hinge, Almond		Appelez-nous	-
36	218251300		Pin-center Hinge				$ 59.54
37	5303202340		Trim-cabinet Corner, Almond		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
39	5303001037		Shim - Upper Hinge				$ 12.39
40	3206105		Cover-upper Hinge, Almond				$ 60.90
42	215880100		Screw-hinge Mtg, Hex Washer Head,1/4-20x0.685		Appelez-nous	-
44	5303283014		Roller Assy, Metal Housing		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	218233300		Channel-shelf Mtg, Side				$ 86.05
56	218220300		Pin-lower Hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.00   (Replaces: 5303207328)				$ 12.76
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099711		Plug-button, Almond, Ctr Hinge Hole		Appelez-nous	-
*73561	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*73562	5303305325		Paint, Touch, Up, Almond		Appelez-nous	-
10A	3206451		Cover-evap Coil		Appelez-nous	-
10B	5303209814		Nut, ``u`` Type, 8-15(a), Fan Motor Mount (not Illustrated		Appelez-nous	-
30A	3206136		Bracket-lower Hinge		Appelez-nous	-
30B	215882300		Tapping Plate, Lower Hinge, (2) (not Illustrated)		Appelez-nous	-
30C	218368500		Shim, Lower Hinge (not Illustrated)				$ 12.58
41A	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
41B	5304500407		Grommet, Shelf Mtg, Lh (not Illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
43A	218724000		Roller Assy, Front, With Housing				$ 227.18
43B	218703002		Roller Assy (not Illustrated)				$ 25.62
43C	5308009760		Roller (not Illustrated)		Appelez-nous	-
43D	5308009790		Spring-roller Adj (not Illustrated)				$ 4.30
43E	5308011326		Washer, .34 X .62 X .02, Nylon (not Illustrated)				$ 9.87
43F	5308009761		Bolt-roller Adj (not Illustrated)				$ 18.61
