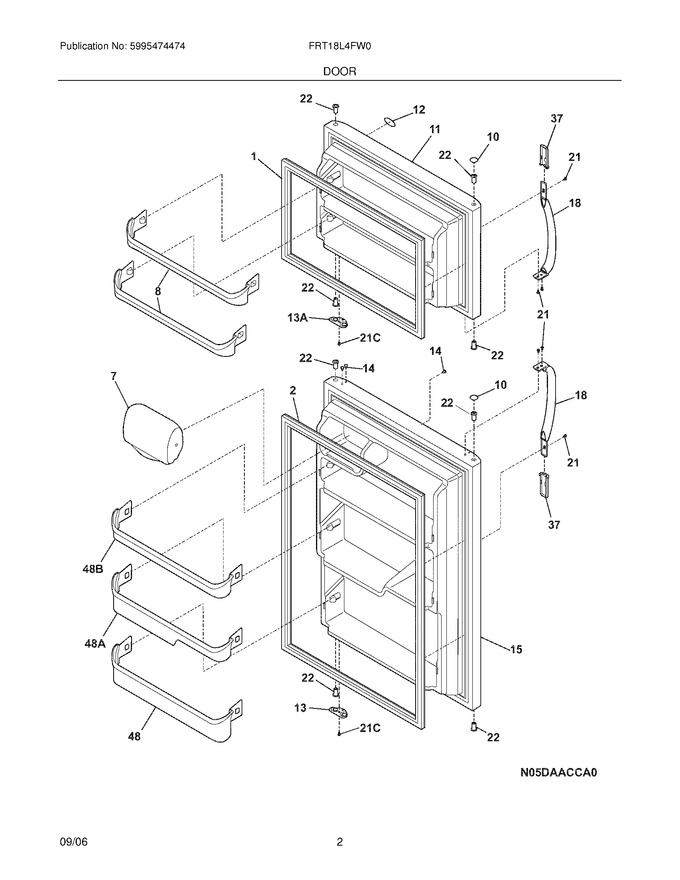

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241872503 | Gasket-frzr Door,white ,magnetic (Replaces: 240542115) |
|
Immediately | $ 137.66 | ||||
| 2 | 242193213 | Gasket-refr Door,white ,magnetic (Replaces: 240542118) |
|
Immediately | $ 190.22 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 49.62 | ||||
| 10 | 240381301 | Plug-button,white ,hinge Brg Hole ,(2) |
|
Immediately | $ 18.95 | ||||
| 11 | 240412501 | Door,frzr ,white ,complete Assy |
|
$ 491.14 | |||||
| 12 | 241808601 | Label-nameplate,white (Replaces: 240415201) |
|
$ 12.69 | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 14 | 240494001 | Plug-button,white |
|
Immediately | $ 18.20 | ||||
| 15 | 240412601 | Door,refr ,white ,complete Assy |
|
$ 334.26 | |||||
| 18 | 218668001 | Handle-door, White |
|
Immediately | $ 66.16 | ||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 7.59 | ||||
| 37 | 215870629 | Trim-handle,2.47`` ,white ,w/satin Al Band |
|
$ 55.99 | |||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 13A | 240312414 | Door Stop,white ,frzr (Replaces: 240312404) |
|
$ 19.13 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 48A | 240337901 | Bin-door,refr |
|
Immediately | $ 52.13 | ||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 34.96 |
