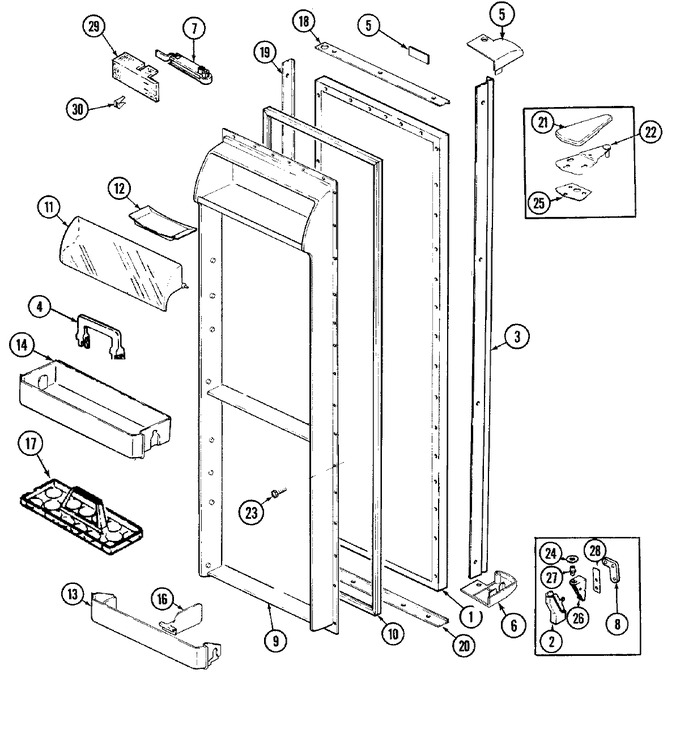

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72448-703-WW | Panel, F.f. Door (wht) | 10 |
|
- | ||||
| 2 | 68978-4 | Cover, Lower Hinge (wht) | 10 |
|
- | ||||
| 3 | 65275-37 | Screw, Handle | 10 |
|
- | ||||
| 3 | 70305-24 | Handle (wht) | 10 |
|
- | ||||
| 4 | 69795-1 | Retainer, Bottle | 10 |
|
- | ||||
| 5 | 70306-2 | End Cap, Handle | 10 |
|
- | ||||
| 5 | 65275-85 | Screw | 10 |
|
- | ||||
| 6 | 70306-1 | End Cap, Handle | 10 |
|
- | ||||
| 7 | 69258-1 | Closer, Door | 10 |
|
- | ||||
| 7 | 414004-1 | Screw | 10 |
|
- | ||||
| 8 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 8 | 65275-59 | Screw | 10 |
|
- | ||||
| 9 | 69243-1 | Liner, F.f. Door----na | 10 |
|
- | ||||
| 10 | 70024-4 | Gasket, F.f. Door (wht) | 10 |
|
$ 184.29 | ||||
| 11 | 69918-3 | Door, Dairy | 10 |
|
- | ||||
| 12 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 13 | 69871-3 | Front, Pick-off | 10 |
|
- | ||||
| 14 | 69872-3 | Shelf, Pick-off | 10 |
|
- | ||||
| 15 | 69261-1 | Bracket, Closer | 10 |
|
- | ||||
| 16 | 69759-2 | Organizer | 10 |
|
- | ||||
| 17 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 18 | 69631-26 | Trim, Perimeter (top) | 10 |
|
- | ||||
| 19 | 69631-1 | Trim, Perimeter | 10 |
|
- | ||||
| 20 | 65275-71 | Screw | 10 |
|
- | ||||
| 20 | 69631-27 | Trim, Perimeter (bottom) | 10 |
|
- | ||||
| 21 | 70121-4 | Cover, Upper Hinge (wht) | 10 |
|
- | ||||
| 22 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 22 | 53709-22 | Hinge, Upper | 10 |
|
- | ||||
| 23 | 65275-5 | Screw | 10 |
|
- | ||||
| 24 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 25 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 26 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 26 | 69516-4 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 27 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 28 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 29 | 52613-1 | Insulation, Closer | 10 |
|
- | ||||
| 29 | 70049-1 | Insulation Door | 10 |
|
- |
