01 - Cooktop Parts

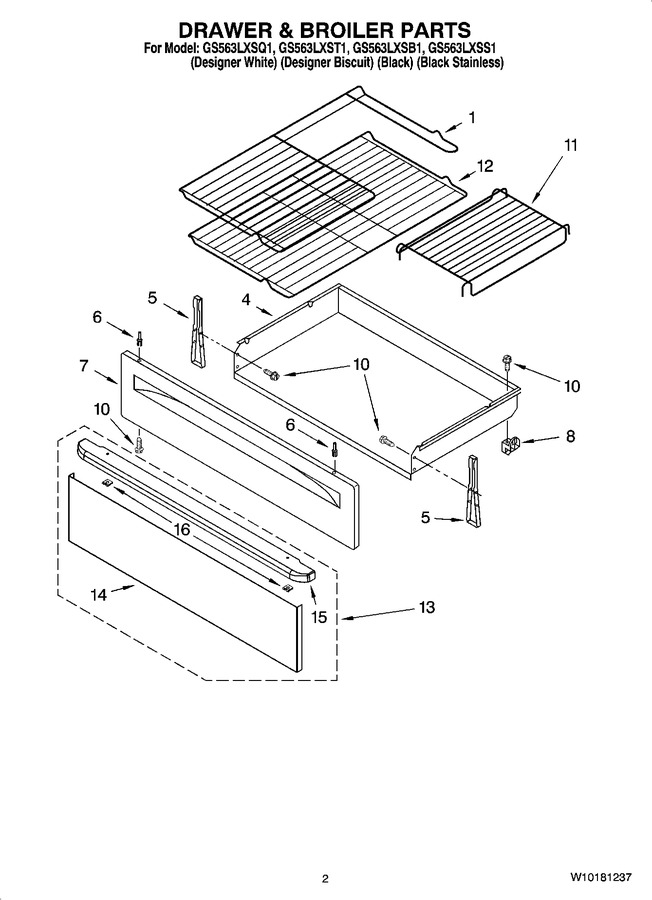

02 - Drawer & Broiler Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Control Panel Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8274021 | Rack, Partial (Replaces: 8274021) |
|
$ 136.38 | |||||
| 4 | 9761031 | Drawer, Storage |
|
- | |||||
| 5 | W11759228 | Bracket, Drawer (2) (Replaces: 3196817) |
|
$ 23.55 | |||||
| 6 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 9.60 | ||||
| 6 | 3196815 | Rivet, Push (2) (almond) |
|
- | |||||
| 6 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 9.49 | ||||
| 7 | W11230473 | Panel, Drawer Front (biscuit) (Replaces: 8272502) |
|
- | |||||
| 7 | W11230490 | Panel, Drawer Front (black) (Replaces: 8053338) |
|
$ 181.36 | |||||
| 7 | W11230486 | Panel, Drawer Front (white) (Replaces: 8053336) |
|
$ 181.28 | |||||
| 8 | W10133364 | Spacer, Glide (stainless Steel) |
|
- | |||||
| 8 | WP8053334 | Spacer, Glide (white, Blk, Biscuit) (Replaces: 8053334) |
|
Immediately | $ 7.06 | ||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 11 | 4396927 | Rack, Insert (Replaces: 8274022) |
|
$ 210.94 | |||||
| 12 | W11520287 | Rack, Oven (Replaces: W10138079) |
|
Immediately | $ 42.16 | ||||
| 14 | 9755797 | Panel, Stainless |
|
- | |||||
| 15 | 9762251 | Handle, Drawer |
|
$ 86.77 | |||||
| 16 | WP9781235 | Speed Clip (Replaces: 9781235) |
|
$ 10.76 |
