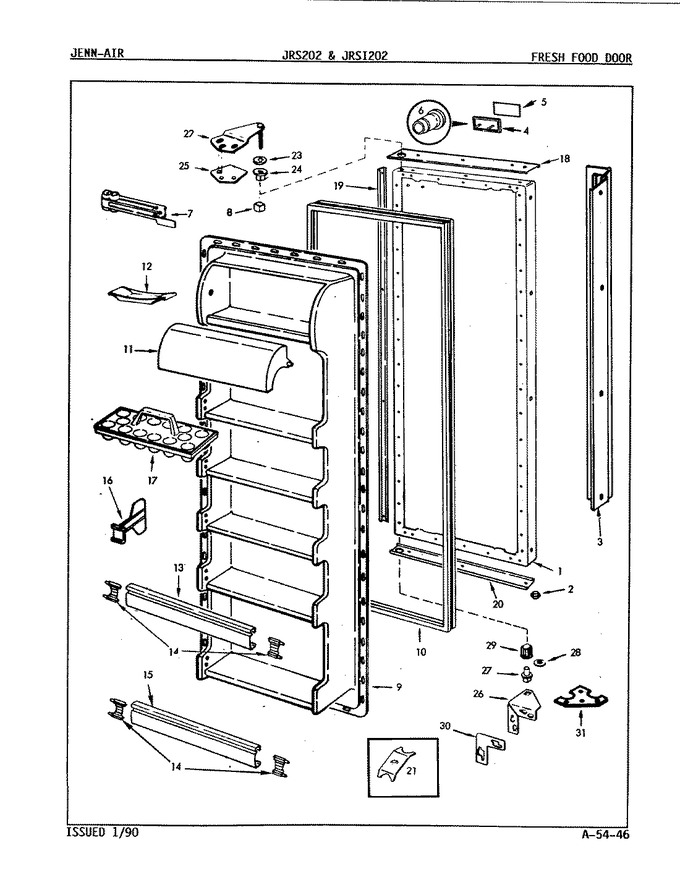

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66688-1-AM | Outer Panel, (almond) |
|
- | |||||
| 1 | 66688-1-WW | Outer Panel, (white) |
|
- | |||||
| 2 | 495039-900 | Plug |
|
- | |||||
| 3 | 66720-2 | Door Trim |
|
- | |||||
| 3 | 65275-4 | Screw |
|
- | |||||
| 4 | 66641-1 | Bezel, Nameplate |
|
- | |||||
| 5 | 66646-1 | Insert |
|
- | |||||
| 6 | 65211-1 | Retainer, Nameplate |
|
- | |||||
| 7 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 7 | 52613-1 | Insulation, Closer |
|
- | |||||
| 7 | 54485-1 | Closer, Door |
|
- | |||||
| 7 | 52614-1 | Bracket, Closer |
|
- | |||||
| 8 | 55990-1 | Seal Sleeve |
|
- | |||||
| 9 | 65643-11 | Liner, Door |
|
- | |||||
| 9 | 9986-12 | Screw,door Liner |
|
- | |||||
| 10 | 53712-7 | Gasket |
|
- | |||||
| 11 | 66184-233 | Door, Dairy |
|
- | |||||
| 12 | 29936-2 | Tray, Butter |
|
- | |||||
| 13 | 59258-84 | Trim, Door Shelf |
|
- | |||||
| 14 | 65246-1 | Retainer |
|
$ 5.04 | |||||
| 15 | 66637-18 | Shelf Trim |
|
- | |||||
| 16 | 66522-4 | Organizer, Shelf |
|
- | |||||
| 17 | 60066-9 | Tray, Egg |
|
- | |||||
| 18 | 66716-1 | Perimeter Trim |
|
- | |||||
| 19 | 66719-1 | Perimeter Trim |
|
- | |||||
| 20 | 66718-1 | Perimeter Trim |
|
- | |||||
| 21 | 66723-1 | Clip |
|
- | |||||
| 21 | W11233072 | Screw (Replaces: 400026-12) |
|
Immediately | $ 12.62 | ||||
| 22 | 66875-1 | Cover, Upper Hinge (chrome) |
|
- | |||||
| 22 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 22 | 53709-16 | Upper Hinge,(chrome) |
|
- | |||||
| 23 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 24 | 66036-1 | Bushing,top/center Hinge |
|
- | |||||
| 25 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 26 | 60630-12 | Hinge, Lower |
|
- | |||||
| 26 | 403062-5 | Screw |
|
- | |||||
| 27 | 53672-1 | Pin, Lower Hinge |
|
- | |||||
| 28 | 54233-1 | Washer |
|
$ 7.71 | |||||
| 29 | 66034-1 | Bushing, Lower Hinge |
|
$ 19.76 | |||||
| 30 | 60626-1 | Shim, Lower Hinge |
|
- | |||||
| 31 | 65964-1 | Tapping Plate, Lower Hinge |
|
- |
