SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice Maker Section


06 - Unit Compartment & System

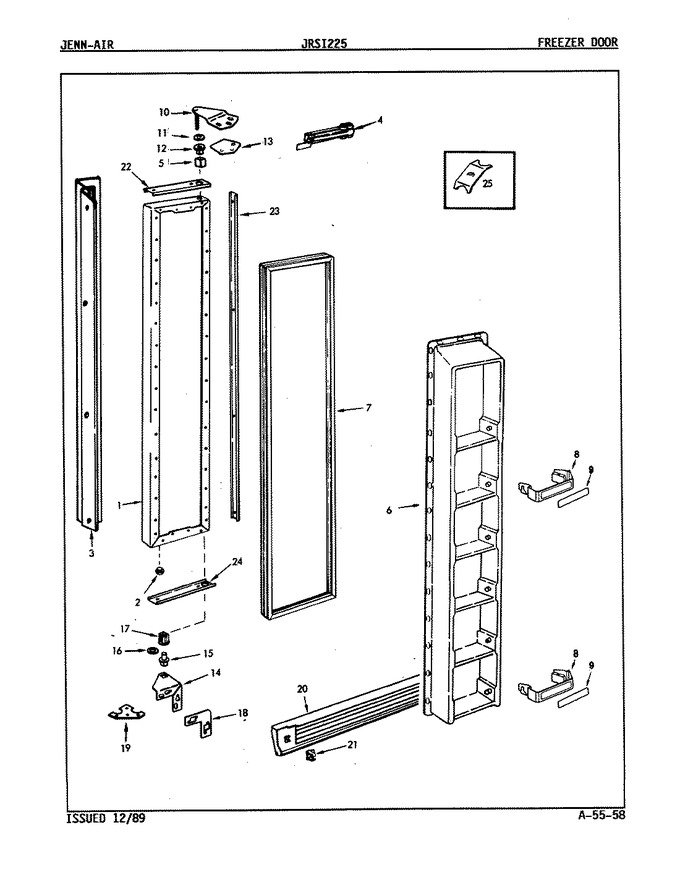

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66687-1-WW		Outer Panel-white	-	Appelez-nous	-
2	495034-900		Plug Button, Door	-	Appelez-nous	-
3	66799-1		Achor, Screw	-	Appelez-nous	-
3	65275-4		Screw	-	Appelez-nous	-
3	06100017		Handle	-	Appelez-nous	-
4	54485-1		Closer, Door	-	Appelez-nous	-
4	52614-1		Bracket, Closer	-	Appelez-nous	-
4	52613-1		Insulation, Closer	-	Appelez-nous	-
4	WP489478		Screw   (Replaces: 400017-1)	-			$ 6.98
5	55990-1		Seal Sleeve	-	Appelez-nous	-
6	06100018		Inner Panel, Door Liner	-	Appelez-nous	-
6	9986-12		Screw,door Liner	-	Appelez-nous	-
7	53712-23		Gasket, Door	-	Appelez-nous	-
8	65701-9		Shelf Front	-	Appelez-nous	-
9	06100019		Insert, Pick Off Front	-	Appelez-nous	-
10	WP3-24838-048		Screw   (Replaces: 9986-87)	-			$ 7.00
10	53709-16		Upper Hinge,(chrome)	-	Appelez-nous	-
10	66875-1		Cover, Upper Hinge (chrome)	-	Appelez-nous	-
11	WP52185-1		Washer   (Replaces: 52185-1)	-		Immediately	$ 9.47
12	66036-2		Bushing, Upper Hinge	-	Appelez-nous	-
13	65031-1		Shim, Upper Hinge	-	Appelez-nous	-
14	60630-10		Hiner, Lower (chrome)	-			$ 26.18
14	403062-801		Screw	-	Appelez-nous	-
15	53672-1		Pin, Lower Hinge	-	Appelez-nous	-
16	54233-1		Washer	-			$ 7.71
17	66034-1		Bushing, Lower Hinge	-			$ 19.76
18	60626-1		Shim, Lower Hinge	-	Appelez-nous	-
19	65964-1		Tapping Plate, Lower Hinge	-	Appelez-nous	-
20	58437-52		Kickplate	-	Appelez-nous	-
21	52854-3		Clip, Kickplate	-	Appelez-nous	-
21	WP489478		Screw, Kickplate Mtg.   (Replaces: 9986-101)	-			$ 6.98
22	06100020		Trim, Perimeter Top Fz	-	Appelez-nous	-
23	06100001		P. Trim, Side	-	Appelez-nous	-
24	06100021		Trim,bottom	-	Appelez-nous	-
25	65275-15		Screw	-	Appelez-nous	-
25	66723-1		Clip	-	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
