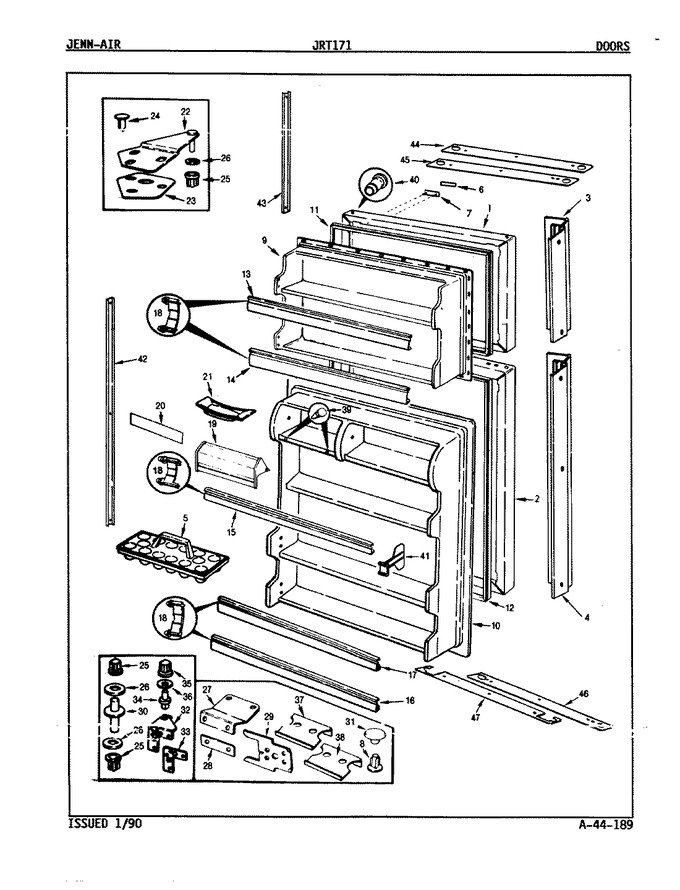

01 - Doors
02 - Freezer Compartment
03 - Fresh Food Compartment
04 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66664-1-AM | Outer Panel (almond) | - |
|
- | ||||
| 1 | 66664-1-WW | Outer Panel (white) | - |
|
- | ||||
| 2 | 66668-1-WW | Outer Panel (white) | - |
|
- | ||||
| 2 | RA95056-1 | Door Insulation Kit | - |
|
- | ||||
| 2 | 66668-1-AM | Outer Panel (almond) | - |
|
- | ||||
| 3 | 68215-1 | Handle, Frz. Door | - |
|
- | ||||
| 4 | 68199-1 | Handle, F.f. Door | - |
|
- | ||||
| 5 | 60621-8 | Tray, Egg | - |
|
- | ||||
| 5 | 65275-4 | Screw | - |
|
- | ||||
| 6 | 68061-4 | Insert, Nameplate | - |
|
- | ||||
| 7 | 68060-1 | Bezel | - |
|
- | ||||
| 8 | 55782-6 | Plug Button (almond) | - |
|
- | ||||
| 8 | 55782-2 | Plug Button (white) | - |
|
- | ||||
| 9 | 65929-5 | Liner, Frz. Door | - |
|
- | ||||
| 10 | 65934-5 | Liner, F.f. Door | - |
|
- | ||||
| 10 | 65275-5 | Screw | - |
|
- | ||||
| 11 | 66199-3 | Gasket, Door | - |
|
- | ||||
| 12 | 66199-4 | Gasket, Door | - |
|
- | ||||
| 13 | WP61003045 | Trim, Shelf (Replaces: 68410-2) | - |
|
$ 129.55 | ||||
| 14 | 68410-5 | Trim, Shelf | - |
|
- | ||||
| 15 | WP61003045 | Trim, Shelf (Replaces: 68410-3) | - |
|
$ 129.55 | ||||
| 16 | WP61003045 | Trim, Shelf (Replaces: 68410-2) | - |
|
$ 129.55 | ||||
| 17 | WP61003045 | Trim, Shelf (Replaces: 68410-4) | - |
|
$ 129.55 | ||||
| 18 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | - |
|
$ 9.39 | ||||
| 19 | 60406-44 | Door, Dairy | - |
|
- | ||||
| 20 | 68128-20 | Trim, Dairy Door | - |
|
- | ||||
| 21 | 29936-2 | Tray, Butter | - |
|
- | ||||
| 22 | 53709-18 | Door Hinge, Upper | - |
|
- | ||||
| 22 | 66875-1 | Cover, Upper Hinge (chrome) | - |
|
- | ||||
| 23 | 65031-1 | Shim, Upper Hinge | - |
|
- | ||||
| 24 | 56144-9 | Plug Button, Hinge Screw (alm) | - |
|
- | ||||
| 24 | 56144-13 | Plug Button, Upper Hinge (wht) | - |
|
- | ||||
| 25 | 66036-1 | Bushing,top/center Hinge | - |
|
- | ||||
| 26 | WP3-24838-048 | Screw (Replaces: 9986-87) | - |
|
$ 7.00 | ||||
| 26 | WP52185-1 | Washer (Replaces: 52185-1) | - |
|
Immediately | $ 9.47 | |||
| 27 | 60031-2 | Door Hinge, Center | - |
|
- | ||||
| 28 | 60034-1 | Spacer, Center Hinge | - |
|
- | ||||
| 29 | WP3-24838-048 | Screw (Replaces: 9986-107) | - |
|
$ 7.00 | ||||
| 29 | 60622-1 | Tapping Plate | - |
|
- | ||||
| 30 | 60035-4 | Pin, Center Hinge | - |
|
- | ||||
| 31 | 56186-1 | Plug Button | - |
|
- | ||||
| 32 | 403062-5 | Screw | - |
|
- | ||||
| 32 | 60630-8 | Door Hinge, Lower | - |
|
- | ||||
| 33 | 60626-1 | Shim, Lower Hinge | - |
|
- | ||||
| 34 | 53672-1 | Pin, Lower Hinge | - |
|
- | ||||
| 35 | 66034-1 | Bushing, Lower Hinge | - |
|
$ 19.76 | ||||
| 36 | 54233-2 | Washer | - |
|
- | ||||
| 37 | 60030-6 | Door Stop, Frzr Door | - |
|
- | ||||
| 38 | 495039-900 | Plug | - |
|
- | ||||
| 38 | 60123-2 | Clip, Stop Screw | - |
|
- | ||||
| 38 | 60030-5 | Door Stop, F.f. Door | - |
|
- | ||||
| 38 | 9986-108 | Screw | - |
|
- | ||||
| 39 | 28272-6 | Bumper, Door | - |
|
- | ||||
| 40 | 68381-1 | Retainer, Nameplate Bezel | - |
|
- | ||||
| 41 | 64097-10 | Organizer, Shelf | - |
|
- | ||||
| 41 | 65275-15 | Screw | - |
|
- | ||||
| 41 | 65275-26 | Screw (no.12 X 5/8``) | - |
|
- | ||||
| 42 | 68195-1 | Trim, Side(refrigerator) | - |
|
- | ||||
| 43 | 68208-1 | Trim, Side (frz) | - |
|
- | ||||
| 44 | 68672-1 | Trim Top (refrigerator) | - |
|
- | ||||
| 45 | 68672-1 | Trim Top (refrigerator) | - |
|
- | ||||
| 46 | 68674-1 | Trim, Bottom (refrigerator) | - |
|
- | ||||
| 47 | 68674-1 | Trim, Bottom (refrigerator) | - |
|
- |
