Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 60096-7 Rail, Shelf Support (lt) - Appelez-nous -
1 60096-8 Rail, Shelf Support (rt) - Appelez-nous -
1 60096-9 Rail, Shelf Support (center) - Appelez-nous -
2 400037-28 Screw - Appelez-nous -
3 60340-1 End Cap, Center Rail - Appelez-nous -
4 60414-62 Trim - Appelez-nous -
5 60075-7 Cover, Meat Pan - Appelez-nous -
7 66637-31 Pan - Appelez-nous -
8 60132-96 Handle, Meat Pan - Appelez-nous -
10 60414-61 Trim - Appelez-nous -
12 60414-39 Trim - Appelez-nous -
13 66834-1 Shelf, Crisper - Appelez-nous -
14 60454-9 Trim, Crisper Shelf - Appelez-nous -
16 68221-417 Pan, Crisper - Appelez-nous -
17 60132-94 Trim, Crisper Pan - Appelez-nous -
18 60148-4 Seal, Crisper Shelf - Appelez-nous -
19 60094-22 Tunnel, Air (meat) - Appelez-nous -
20 60093-2 Damper, Air Tunnel - Appelez-nous -
21 60092-1 Foam Insulator, Air Tunnel - Appelez-nous -
22 W11233072 Screw   (Replaces: 400015-31) - In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

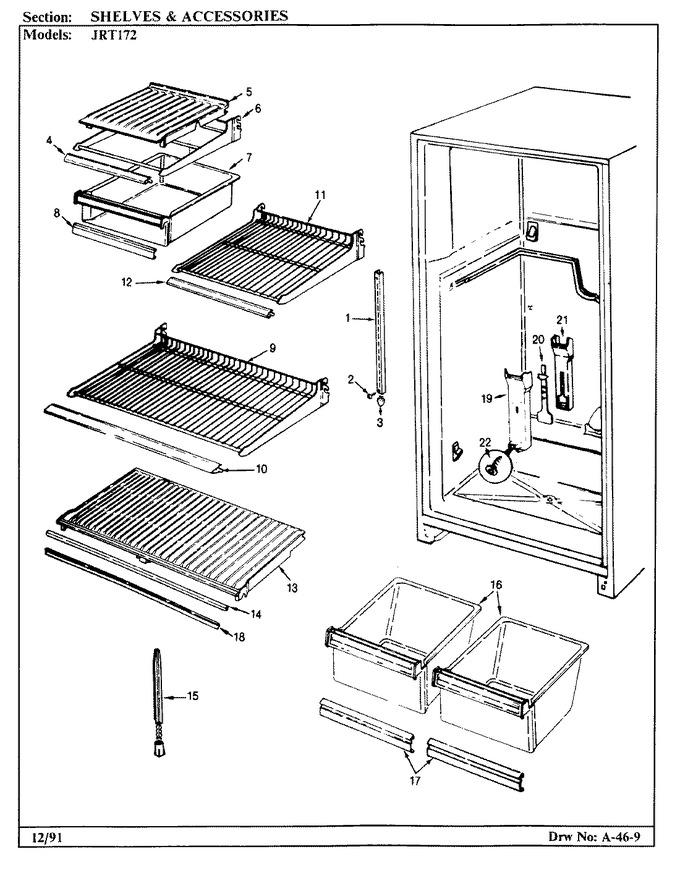

Diagram for JRT172L (BOM: AJ22B)
