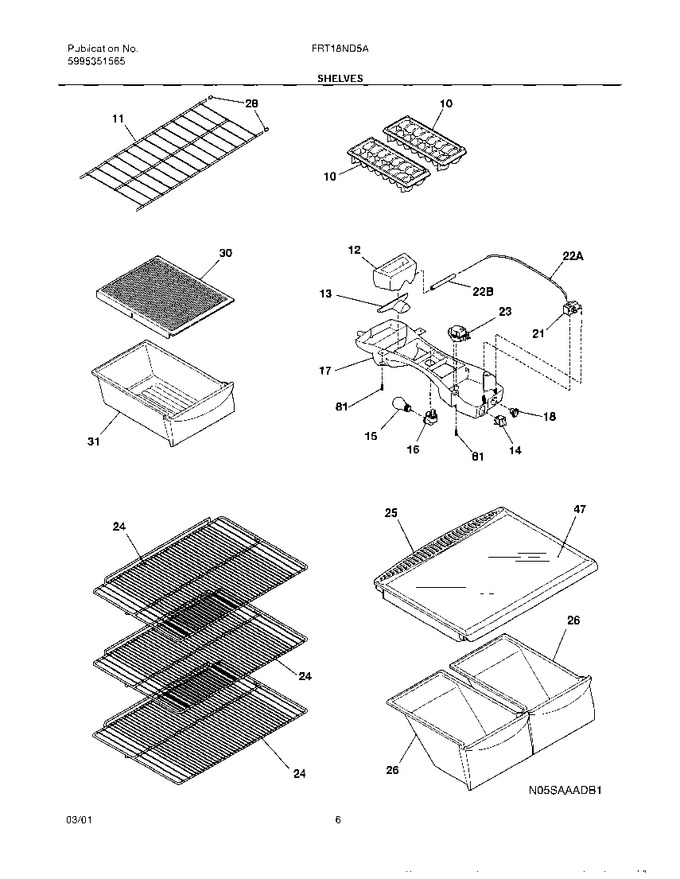

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	240358002		Shelf-freezer,full Width		Appelez-nous	-
12	240362501		Diffuser-air,top		Appelez-nous	-
13	240362601		Diffuser-air,top			Immediately	$ 41.81
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 72.68
17	240352701		Control Box		Appelez-nous	-
18	240360801		Knob-control				$ 43.95
21	5304418228		Control-temperature				$ 188.06
22	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
22	218731105		Tube,pvc ,white ,@ Air Diffuser ,insulator		Appelez-nous	-
23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
24	240360908		Shelf,sliding ,wire   (Replaces: 240360901)			Immediately	$ 94.98
25	242201802		Cover-crisper Pan,w/ Beam ,less Insert   (Replaces: 240364701)			Immediately	$ 123.10
26	240337101		Pan-crisper,white ,(2) ,no Graphics				$ 109.78
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
30	240361801		Hanger-meat Pan,drop Thru		Appelez-nous	-
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240354203)			Immediately	$ 135.77
47	240350608		Insert-pan Cover,glass			Immediately	$ 45.50
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	5303299664		Spacer-shelf				$ 24.10
NI	240392601		Seal-diffuser				$ 6.57
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09

    View Diagram in Separate Window       Print Part List
