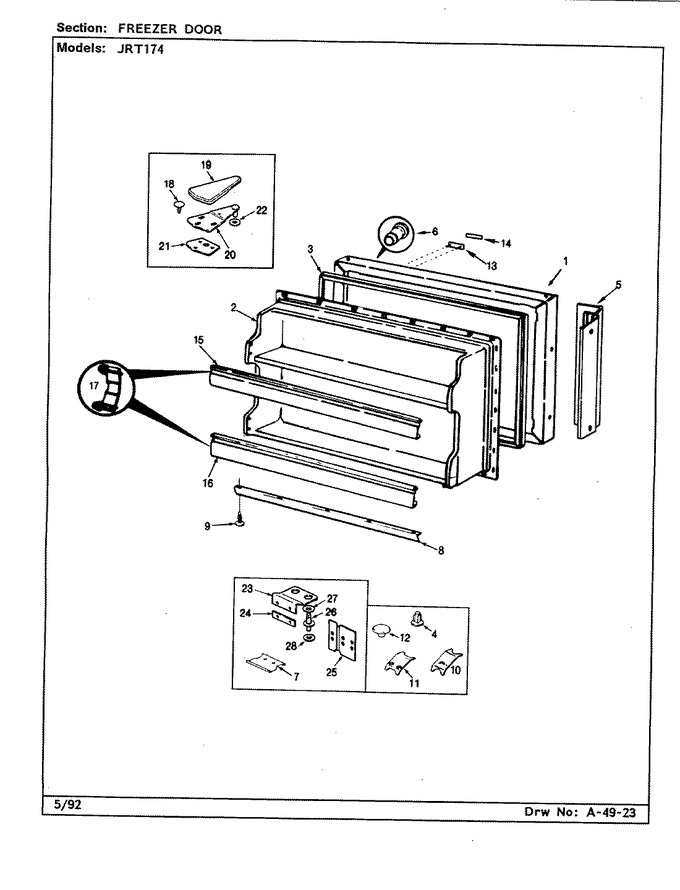

01 - Freezer Door (b/m Cj23a)
02 - Fresh Food Door (b/m Cj23a)
03 - Shelves & Accessories (b/m Cj23a)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 65929-13 | Liner, Door | CJ23A |
|
- | ||||
| 2 | 65275-5 | Screw | CJ23A |
|
- | ||||
| 3 | 66199-3 | Gasket, Door | CJ23A |
|
- | ||||
| 4 | 67557-2 | Plug Button, Air Duct & I/m | CJ23A |
|
- | ||||
| 4 | 55782-10 | Plug Button, Hdle & Door Stop | CJ23A |
|
- | ||||
| 4 | 55782-6 | Plug Button (almond) | CJ23A |
|
- | ||||
| 4 | 67557-3 | Plug, Almond | CJ23A |
|
- | ||||
| 5 | 65275-37 | Screw, Handle | CJ23A |
|
- | ||||
| 5 | 68660-2 | Handle, Frz | CJ23A |
|
- | ||||
| 6 | 29356-1 | Retainer, Nameplate | CJ23A |
|
- | ||||
| 7 | 65275-48 | Screw | CJ23A |
|
- | ||||
| 7 | 68988-1 | Stop, Door | CJ23A |
|
- | ||||
| 8 | 68930-1 | Seal, Secondary | CJ23A |
|
- | ||||
| 9 | 56686-5 | Clip, Secondary Seal | CJ23A |
|
- | ||||
| 10 | 66799-1 | Achor, Screw | CJ23A |
|
- | ||||
| 11 | 60123-2 | Clip, Stop Screw | CJ23A |
|
- | ||||
| 12 | 67634-3 | Plug Button, Hinge Cup (alm) | CJ23A |
|
- | ||||
| 12 | 67634-2 | Plug Button, Hinge Cup (wht) | CJ23A |
|
- | ||||
| 13 | 68060-1 | Bezel | CJ23A |
|
- | ||||
| 14 | 68061-4 | Insert, Nameplate | CJ23A |
|
- | ||||
| 15 | WP61003045 | Trim, Shelf (Replaces: 68410-2) | CJ23A |
|
$ 129.55 | ||||
| 16 | 68410-5 | Trim, Shelf | CJ23A |
|
- | ||||
| 17 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | CJ23A |
|
$ 9.39 | ||||
| 18 | 56144-9 | Plug Button, Hinge Screw (alm) | CJ23A |
|
- | ||||
| 18 | 56144-13 | Plug Button, Upper Hinge (wht) | CJ23A |
|
- | ||||
| 19 | 65003-6 | Cover, Upper Hinge (wht) | CJ23A |
|
- | ||||
| 19 | 65003-3 | Cover, Upper Hinge (alm) | CJ23A |
|
- | ||||
| 20 | WP3-24838-048 | Screw (Replaces: 65275-52) | CJ23A |
|
$ 7.00 | ||||
| 20 | 53709-20 | Hinge, Upper | CJ23A |
|
- | ||||
| 21 | 65031-1 | Shim, Upper Hinge | CJ23A |
|
- | ||||
| 22 | 54233-1 | Washer | CJ23A |
|
$ 7.71 | ||||
| 23 | 68811-2 | Hinge, Center | CJ23A |
|
- | ||||
| 23 | 65275-24 | Screw | CJ23A |
|
- | ||||
| 24 | 68812-1 | Shim, Center Hinge | CJ23A |
|
- | ||||
| 25 | 68377-1 | Tapping Plate, Center Hinge | CJ23A |
|
- | ||||
| 26 | 67322-1 | Pin, Center Hinge | CJ23A |
|
- | ||||
| 27 | 67483-1 | Washer, Center Hinge (upper) | CJ23A |
|
- | ||||
| 28 | 54233-2 | Washer | CJ23A |
|
- |
