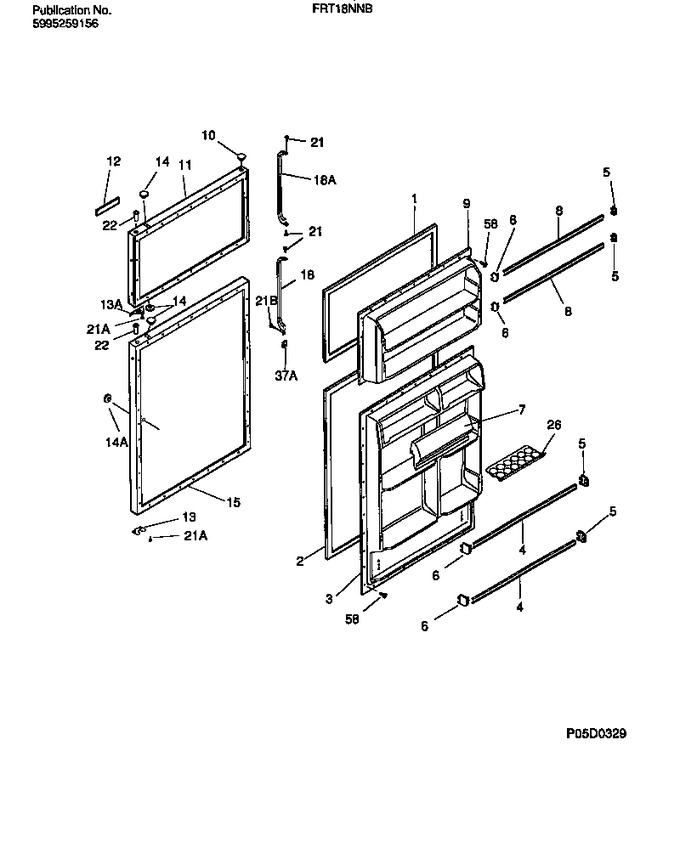

02 - Door Section


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608902		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732403		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	5303206569		Panel-inner Door, Refr		Appelez-nous	-
4	215139836		Rack-door, 25.25`` X 1.58``		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303304564		Door-dairy		Appelez-nous	-
8	215139835		Rack-door, 25.06`` X 1.58``				$ 15.28
9	5303206550		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917345		Panel-frzr Door, Almond, W/insualtion		Appelez-nous	-
12	215008602		Nameplate Assy, Almond		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917412		Panel-refr Door, Almond, W/insulation & Cross Brace		Appelez-nous	-
18	215482143		Handle-door, 17.37``, Almond		Appelez-nous	-
21	5303272568		Screw-handle Mtg, Oval Head, 10-24(d) X 5/8, Almond, Cr		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*43080	5303917276		Insualtion-door, Fiberglass, (bulk)				$ 330.91
13A	218249002		Door Stop, Almond, Frzr				$ 47.88
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215482132		Handle-door, 17.02``, Almond		Appelez-nous	-
21-A	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2, Frzr Dr Stop   (Replaces: 218252200)			Immediately	$ 14.18
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215480202		Trim-handle, End Cap, Almond, Refr Door		Appelez-nous	-
