SELECT A DIAGRAM

01 - Freezer Compartment (b/m Dj24a)

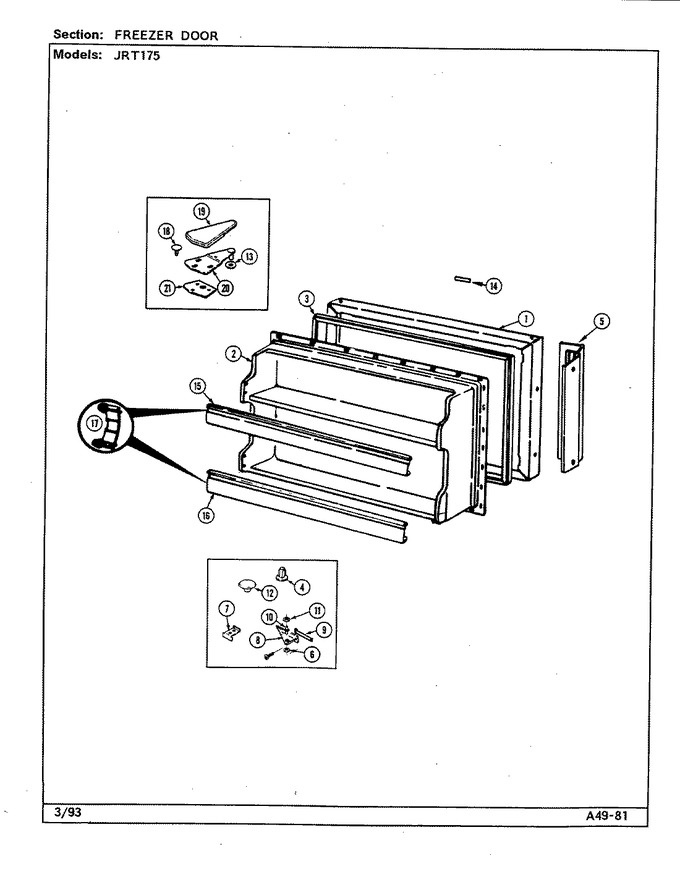

02 - Freezer Door (b/m Dj24a)


03 - Fresh Food Compartment (b/m Dj24a)


04 - Fresh Food Door (b/m Dj24a)


05 - Shelves & Accessories (b/m Dj24a)


06 - Unit Compartment & System (b/m Dj24a)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-11-WW		Panel, Outer Door (wht)	10	Appelez-nous	-
2	69466-1		Liner	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
3	70025-3		Gasket	10	Appelez-nous	-
4	67557-3		Plug, Almond	10	Appelez-nous	-
4	55782-6		Plug Button (almond)	10	Appelez-nous	-
5	65275-37		Screw, Handle	10	Appelez-nous	-
5	69632-4		Handle (blk)	10	Appelez-nous	-
6	54233-7		Washer	10	Appelez-nous	-
7	69256-2		Stop, Door	10	Appelez-nous	-
7	65275-48		Screw	10	Appelez-nous	-
8	65275-62		Screw	10	Appelez-nous	-
8	69514-2		Hinge, Center	10	Appelez-nous	-
9	69515-1		Shim, Center Hinge	10	Appelez-nous	-
10	69517-1		Pin, Center Hinge	10	Appelez-nous	-
11	67483-6		Washer	10	Appelez-nous	-
12	67634-3		Plug Button, Hinge Cup (alm)	10	Appelez-nous	-
13	54233-2		Washer	10	Appelez-nous	-
14	68061-4		Insert, Nameplate	10	Appelez-nous	-
15	WP61003045		Trim, Shelf   (Replaces: 68410-2)	10			$ 129.55
16	WP61003045		Trim, Shelf   (Replaces: 68410-46)	10			$ 129.55
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
18	56144-9		Plug Button, Hinge Screw (alm)	10	Appelez-nous	-
19	65003-3		Cover, Upper Hinge (alm)	10	Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
20	53709-20		Hinge, Upper	10	Appelez-nous	-
21	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
